Запчасти Case 821G (55.101.050[01]) - ENGINE AND REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

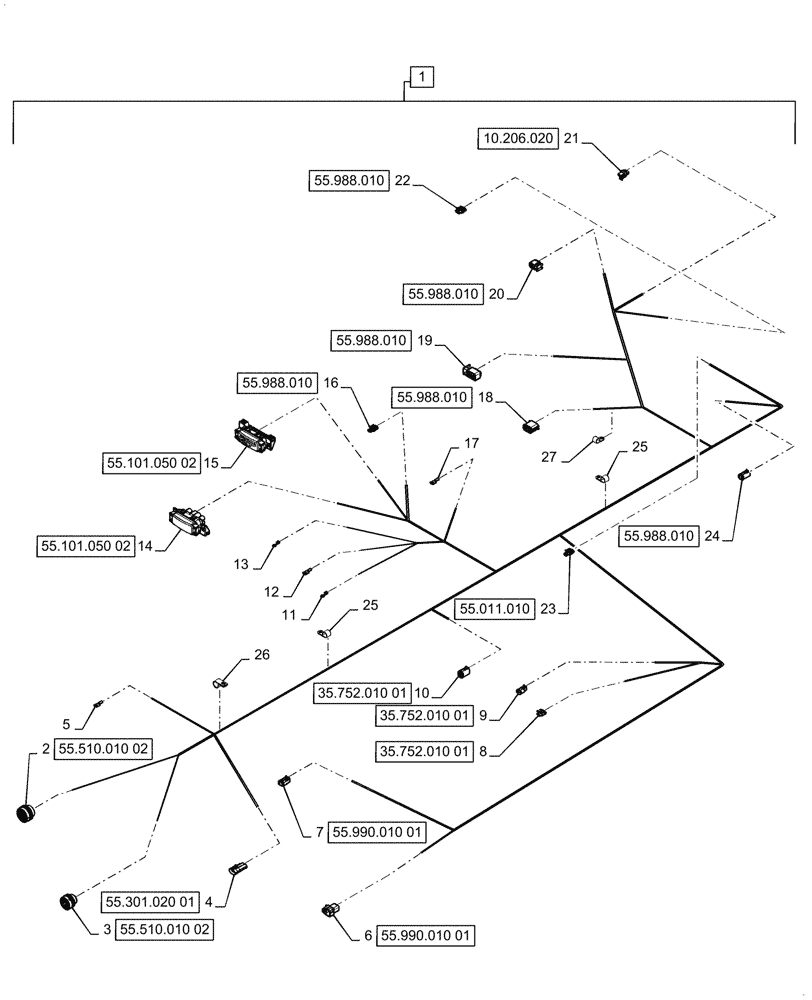

Схема запчастей Case 821G - (55.101.050[01]) - ENGINE AND REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
55.988.010
13
15
6
21
24
27
25
5
7
10
12
20
14
26
22
2
23
8
4
11
16
19
3
9
25
17
18
1
55.301.020 01
55.990.010 01
55.990.010 01
55.988.010
55.988.010
55.988.010
55.988.010
55.988.010
55.101.050 02
55.011.010
10.206.020
55.101.050 02
55.510.010 02
55.510.010 02
35.752.010 01
35.752.010 01
35.752.010 01

Артикул

Название

Примечание

Количество

1

47857130

WIRE HARNESS

Incl 2 - 27

1шт.

2

87696948

MULTIPOLE CONNECTOR,Male, 29 Pole

Engine to Cab

1шт.

2

87700175

ELEC CONNECTOR

Shell

1шт.

2

87704524

ELEC CONNECTOR,Pin, Size 12

Cavities, 1 - 4

2шт.

2

87697956

TERMINAL

Cavities, 5 - 17, 21, 22, 25, 26, 28

20шт.

2

84807680

PLUG

Cavities, 18 - 20, 23, 24, 27, 29

7шт.

3

87703931

ELEC CONNECTOR

Engine to Cab

1шт.

3

84376518

BOOT

Shell

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

14шт.

4

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

High Pressure Switch

1шт.

4

87688710

MULTIPOLE CONNECTOR,Female, 2 Pole

1шт.

4

87688862

LOCKING TAB

1шт.

4

87688814

TERMINAL

2шт.

5

84401295

TERMINAL

Cab Power

1шт.

5

47361360

BOOT

1шт.

6

87700321

ELEC CONNECTOR,Female, 8 Cavities

Engine to Hood

1шт.

6

84806919

PLUG,Wedge Lock

Wedge Lock

1шт.

6

87695623

ELEC. TERMINAL PIN

8шт.

7

87711966

PLUG

Hood Motor

1шт.

7

87712180

ELEC CONNECTOR

Wedge Lock

1шт.

7

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

2шт.

8

87693821

ELEC CONNECTOR,Female, 2 Cavities

Soelnoid Fan Control

1шт.

8

87705073

STOP LOCK

1шт.

8

87688852

ELEC. TERMINAL PIN

2шт.

9

87695582

ELEC CONNECTOR,Female, 2 Pole

Fan Reverser Solenoid

1шт.

9

84391159

WIRE CONNECTOR

1шт.

9

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

10

87694112

ELEC CONNECTOR,Female, 6 Pole

Fan Speed Sensor Jumper

1шт.

10

87694150

LOCKING TAB,Wedge Lock

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

5шт.

10

84068583

PLUG,12 - 16 Ga, White

Cavity 6

1шт.

11

84186853

TERMINAL

Junction Stud, B+ In Rear

1шт.

12

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Junction Stud, B+ In Rear

1шт.

13

84253168

TERMINAL

Junction Stud, B+ In Rear

1шт.

14

84563565

FUSE HOLDER

Load Center

1шт.

14

47406522

RELAY,4 Pin, 24V

2шт.

14

47563654

ELEC CONNECTOR

Tether Cover

1шт.

14

84404932

COVER

Cover

1шт.

14

47563646

ELEC CONNECTOR

Cavities, 5 - 8

4шт.

14

84574203

TERMINAL

Cavities, 1, 4, 9,12

4шт.

14

84574199

TERMINAL

Cavities 2, 3, 10, 11

4шт.

15

84380518

FUSE BOX

Load Center

1шт.

15

47563654

ELEC CONNECTOR

Tether Cover

1шт.

15

87686742

PLUG

Cavities, 12, 16, 21, 22, 27, 28, 42, 44

8шт.

15

84127702

FUSE,10A, Mini, Red

1шт.

15

84127704

FUSE,20A, Mini, Yellow

2шт.

15

84127705

FUSE,25A, Mini, White

1шт.

15

84127708

FUSE,30A, Mini, Green

1шт.

15

84152583

FUSE,7.5A, Mini, Brown

2шт.

15

84153830

FUSE,5A, Mini, Beige

1шт.

15

87312626

RELAY,24V

3шт.

15

87318986

RELAY,4 Pin, 24V

2шт.

15

87680656

CONTACT

48шт.

16

82012083

WIRE CONNECTOR,Female

Grid Heater Control

1шт.

16

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

17

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Cab Power, From Rear Stud

1шт.

18

87695592

CONTACT HOUSING,Female, 12 Pole

Inline to SCR Sensors Harness

1шт.

18

87695651

LOCKING TAB,Wedge Lock

1шт.

18

84068583

PLUG,12 - 16 Ga, White

Cavities, 2, 3

2шт.

18

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities, 1, 4 - 12

10шт.

19

47421681

ELEC CONNECTOR

Denox Control Unit

1шт.

19

84567010

COVER

1шт.

19

84129571

PLUG

Cavities, 1, 5 - 7

4шт.

19

84152576

TERMINAL

Cavities, 2 - 4, 8 - 12

8шт.

20

84146685

WIRE CONNECTOR,Female, 3 Cavities

SCR TankHeating Valve

1шт.

20

84129571

PLUG

Cavity 2

1шт.

20

84152576

TERMINAL

Cavities, 1, 3

2шт.

21

87679438

WIRE CONNECTOR,Female

Filter Heater

1шт.

21

84806458

COLLAR

Lock

1шт.

21

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

2шт.

22

84062580

CONNECTOR, ELEC

Inline to Def Level &Temp

1шт.

22

84300195

TERMINAL

3шт.

23

82012083

WIRE CONNECTOR,Female

Fuel Level

1шт.

23

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

24

87694153

CONTACT HOUSING,Female, 4 Cavities

Inline to DEF Quality Sensor

1шт.

24

84074640

LOCKING TAB,Wedge Lock

Lock

1шт.

24

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

4шт.

25

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

2шт.

26

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

Выбрано товаров: 81
