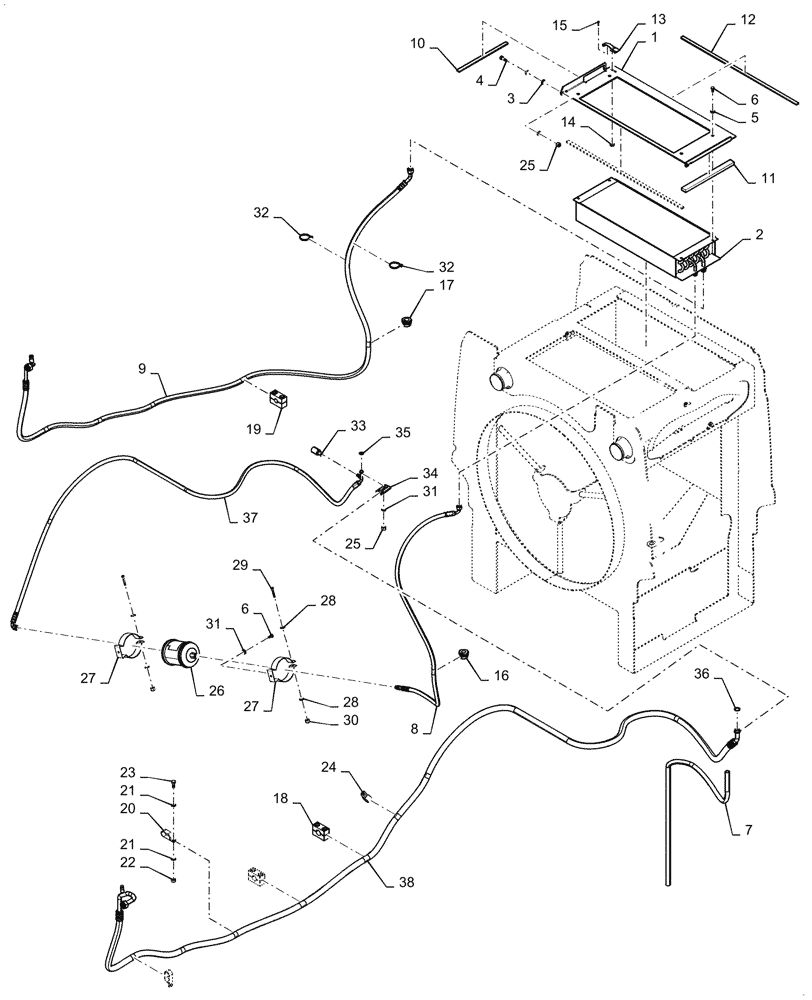

Запчасти Case 821G (50.200.070) - AIR CONDITIONER CONDENSER (50) - CAB CLIMATE CONTROL

1

84411602

PLATE

A/C Condenser

1шт.

2

8500878

CONDENSER

A/C

1шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

4

84591180

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

7

48067525

HVAC Drain

TUBE

1шт.

8

84191331

A/C HOSE

Condenser to Dryer

1шт.

9

48055077

Compressor to Condenser

HOSE

1шт.

10

87432328

SEAL

A/C Condenser, Latch

1шт.

11

47728710

FOAM

A/C Cooler

1шт.

12

8500133

OIL SEAL

Oil Cooler, Side

2шт.

13

60-4640T1

LATCH

1шт.

14

225-14108

NUT,#8-32

2шт.

15

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

16

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

17

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

18

367489A1

BLOCK

Tube Mounting

2шт.

19

379374A1

BLOCK

Tube Mounting

1шт.

20

31-1081

CLAMP

4шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

24

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

26

47821526

RECEIVER-DRYER

Horizontal

1шт.

27

433723A1

CLAMP

2шт.

28

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

29

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

30

832-10406

NUT,M6 x 1, Cl 8

2шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

32

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

33

284273A2

SWITCH, A/C HIGH PRE

High Pressure

1шт.

34

47689567

PLATE

1шт.

35

47624200

WASHER

1шт.

36

47624208

SEALING WASHER

1шт.

37

48080635

Dryer to Cab

HOSE

1шт.

38

48055076

Cab to Compressor

HOSE

1шт.
