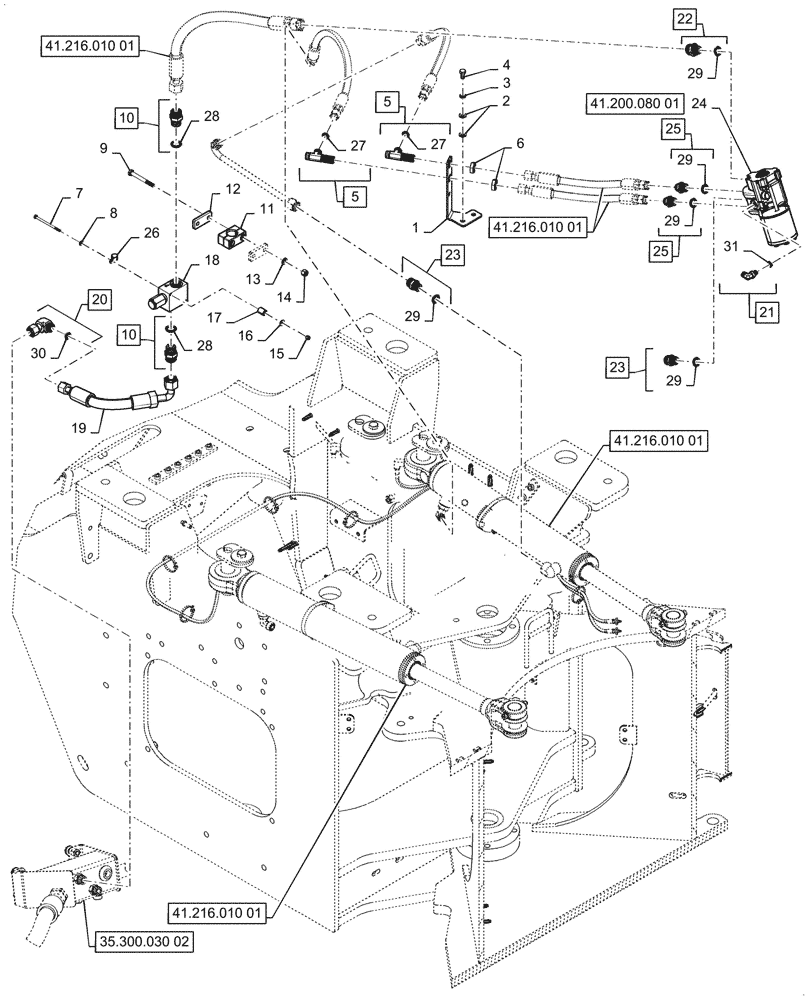

Запчасти Case 821G (41.216.010[02]) - STEERING CYLINDER, MOUNTING (41) - STEERING

1

47728697

BRACKET

1шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

5

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 27

2шт.

6

701-903

NUT,13/16" - 16

2шт.

7

827-6100

BOLT,Hex, M6 x 100mm, Cl 10.9

2шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

10

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 28

2шт.

11

372453A1

BLOCK

2шт.

12

367658A1

PLATE

4шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

15

832-10406

NUT,M6 x 1, Cl 8

2шт.

16

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

17

87563043

SPACER

2шт.

18

87427823

VALVE PRESSURE RELIE

1шт.

19

87563042

HOSE ASSY.

Steering Return

1шт.

20

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 30

1шт.

21

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 31

1шт.

22

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 29

1шт.

23

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 29

3шт.

24

84195173

STEERING VALVE

Orbitrol

1шт.

25

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 29

2шт.

26

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

1шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

28

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

29

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

6шт.

30

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

31

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
