Запчасти Case 821G (41.200.040[01]) - VAR - 782442 - ELECTRIC SYSTEM CONTROL, STEERING - W/O JOYSTICK (41) - STEERING

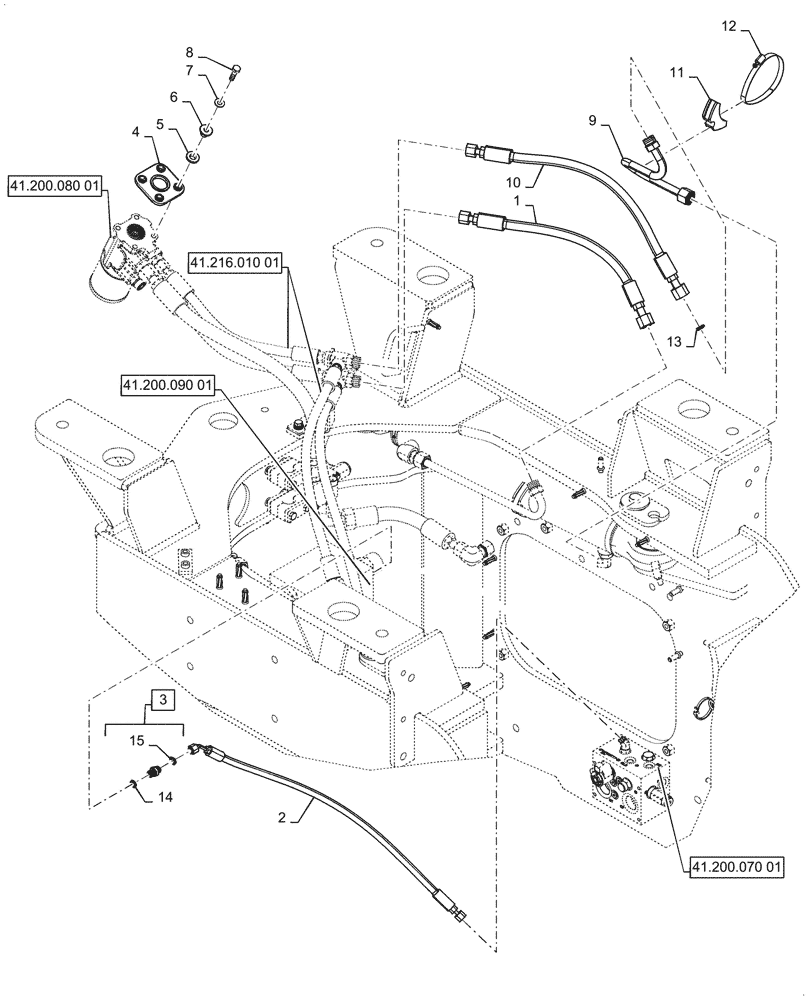

Схема запчастей Case 821G - (41.200.040[01]) - VAR - 782442 - ELECTRIC SYSTEM CONTROL, STEERING - W/O JOYSTICK (41) - STEERING
41.200.070 01
1
2
13
11
3
12
14
4
9
6
10
15
8
7
5
41.216.010 01
41.200.090 01
41.200.080 01

Артикул

Название

Примечание

Количество

1

47382546

HOSE

Right Side Rod

1шт.

2

87379711

HOSE ASSY.

Load Sense

1шт.

3

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 14, 15

1шт.

4

84553550

ISOLATOR

Steering Pump

1шт.

5

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

6

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

9

47930333

TUBE

Right Steering Cylinder Head

1шт.

10

47930335

HOSE

Right Side Base

1шт.

11

8500483

BLOCK

1шт.

12

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 15
