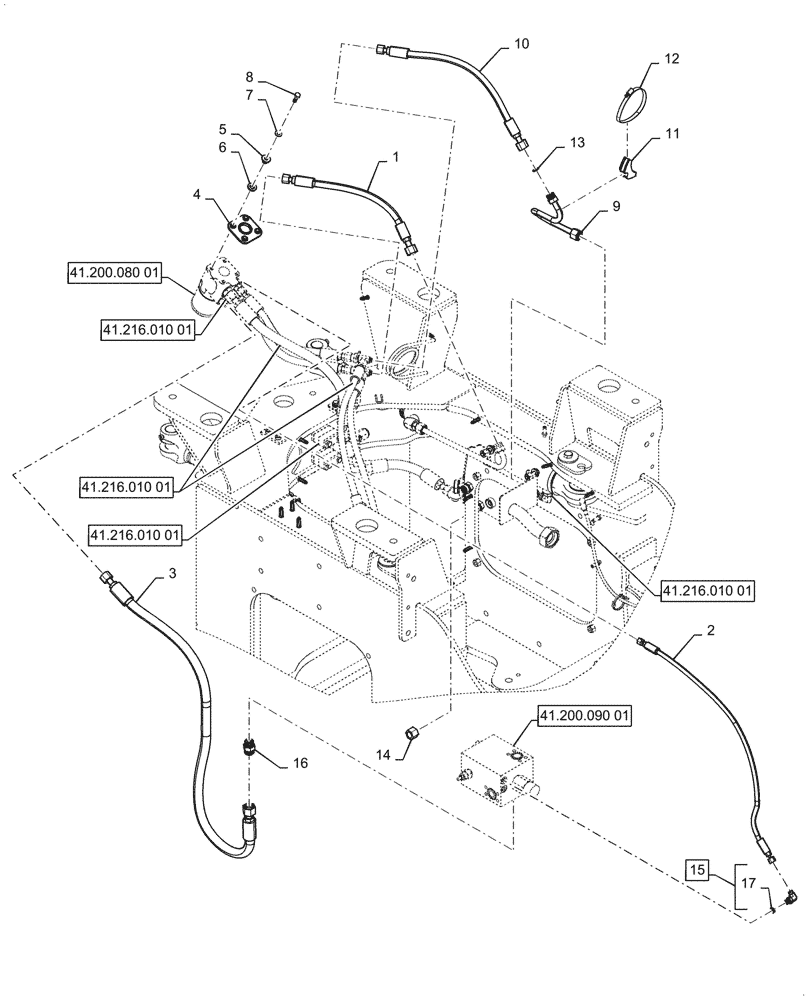

Запчасти Case 821G (41.200.020[01]) - VAR - 782441 - STANDARD STEERING - W/O JOYSTICK (41) - STEERING

1

47382546

HOSE

RH Side Rod

1шт.

2

47670981

HOSE

Steering Load Sense

1шт.

3

47670984

HOSE

Steering Supply

1шт.

4

84553550

ISOLATOR

1шт.

5

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

6

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

9

47930333

TUBE

RH Steering Cylinder, Head

1шт.

10

47930335

HOSE

RH Side Base

1шт.

11

8500483

BLOCK

1шт.

12

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

701-906

CAP,1" - 14

1шт.

15

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 17

1шт.

16

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

1шт.

17

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
