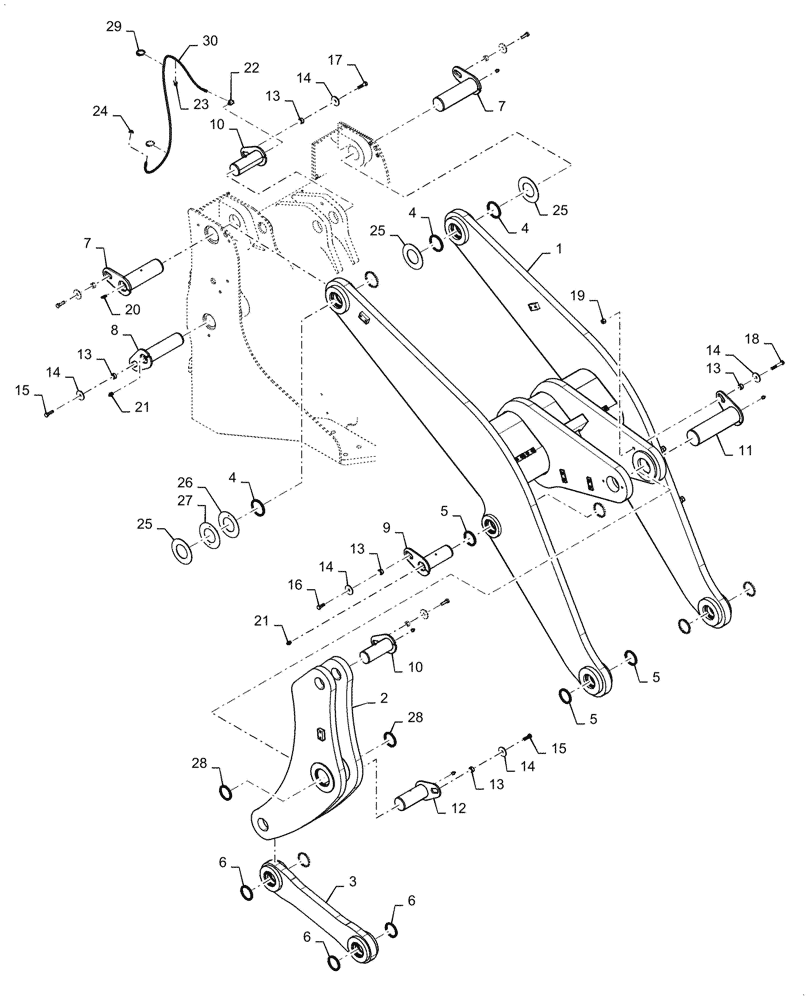

Запчасти Case 821G (39.100.090) - LIFT ARM, Z-BAR (39) - FRAMES AND BALLASTING

1

47641634

LIFT ARM

Z-Bar

1шт.

1

47786304

LIFT ARM

Z-Bar, NH

1шт.

2

47786315

BELLCRANK

Z-Bar

1шт.

3

84527287

LIFT LINK

Dump Assembly

1шт.

4

86982500

SEAL,95.12mm ID x 111.15mm OD x 9.77mm Thk

4шт.

5

365523A1

WIPER SEAL

8шт.

6

S92653

WIPER

4шт.

7

47909419

PIN

Lift Arm

2шт.

8

87308904

PIN,82.55mm OD x 308mm L

Lift Cylinder / Chassis

2шт.

9

87308953

PIN,82.55mm OD x 239.5mm L

Lift Cylinder / Arm

2шт.

10

87308975

PIN

Tilt Cylinder

2шт.

11

87308507

PIN,107.95mm OD x 375.5mm L

Bellcrank

1шт.

12

87308983

PIN

Dump Link

1шт.

13

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

10шт.

14

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

15

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

16

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

17

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

1шт.

18

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

19

832-10416

NUT,M16 x 2, Cl 8

1шт.

20

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

22

328082A1

ELBOW

90 Deg

1шт.

23

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

24

F53473

LOCK NUT,1/8-27 NPSM

1шт.

25

105917A1

WASHER,98mm ID x 176mm OD x 3.5mm Thk

Dump Link

1шт.

26

87308470

WASHER

1шт.

27

87308469

WASHER

1шт.

28

87308559

SEAL

Wiper Rod

2шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

30

318012A1

FLEXIBLE HOSE

Grease Line

1шт.
