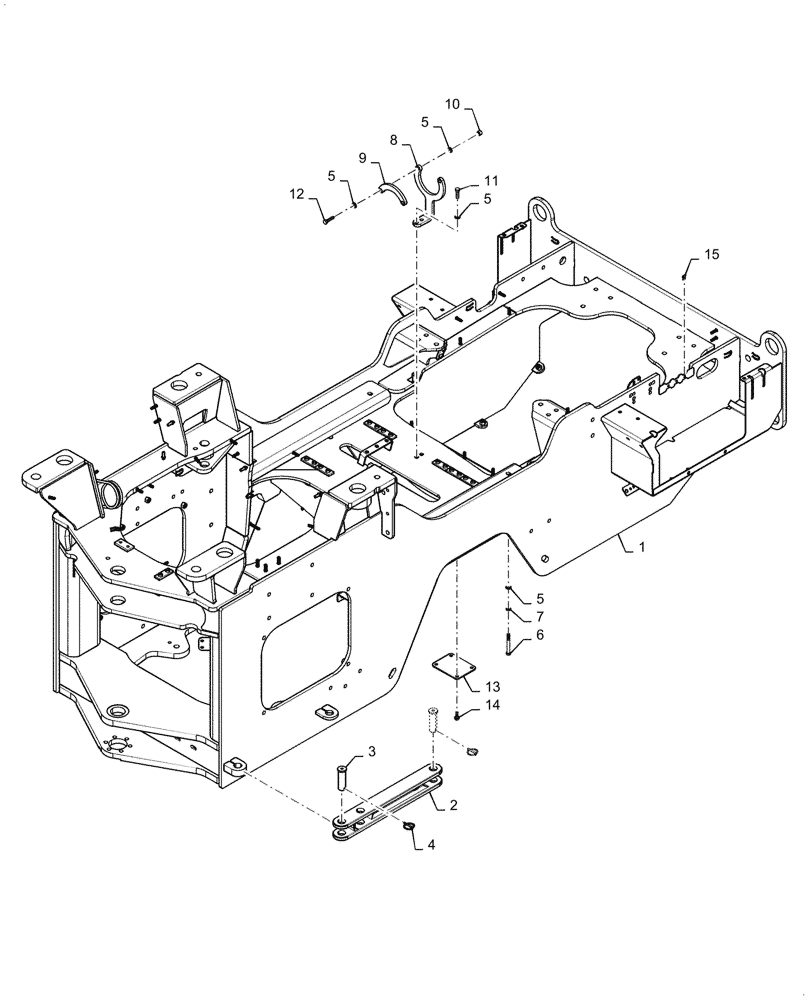

Запчасти Case 821G (39.100.030) - REAR CHASSIS, Z-BAR / XR (39) - FRAMES AND BALLASTING

1

47898999

FRAME

Rear Chassis

1шт.

2

412067A1

LOCKING BAR

1шт.

3

126268A1

PIN,31.8mm OD x 108mm L

2шт.

4

A30338

PIN

2шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

6

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

7

892-11012

LOCK WASHER,M12

4шт.

8

84238373

GUARD

Drive Shaft

1шт.

9

87333866

GUARD

Drive Shaft, Top

1шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

12

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

13

47397618

PLATE

Cover, Tank Drain

1шт.

14

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

15

833-40306

SPRING NUT,M6, U

3шт.
