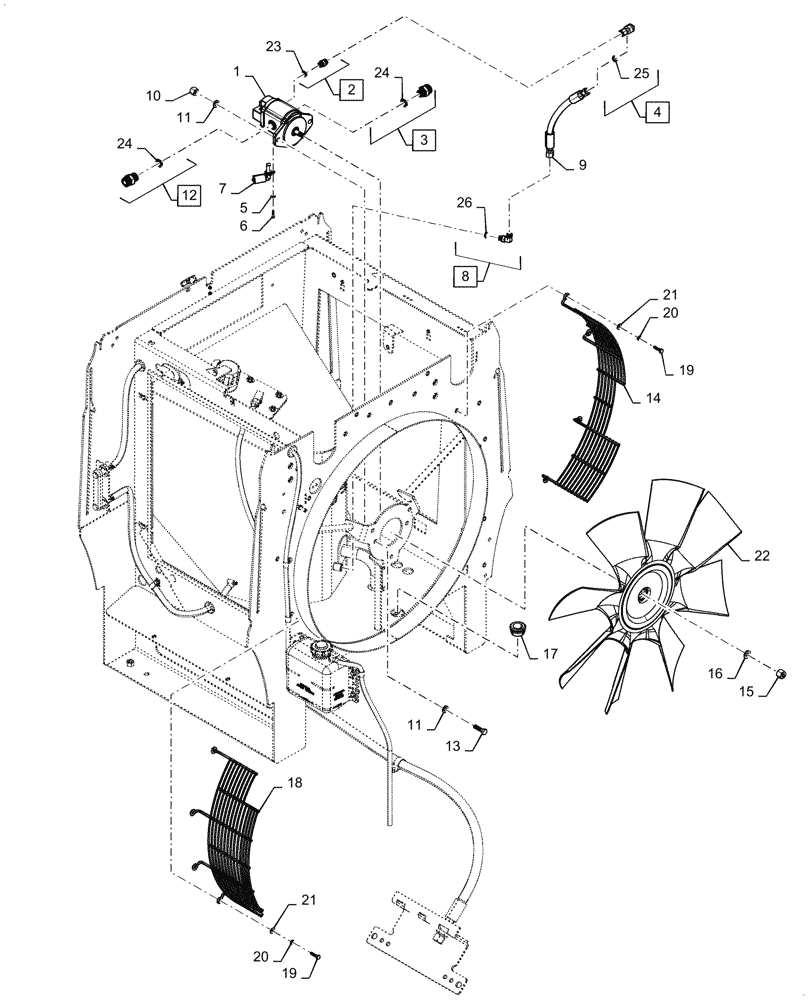

Запчасти Case 821G (35.752.020) - FAN DRIVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

47883009

MOTOR-PUMP

23CC

1шт.

2

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 23

1шт.

3

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 24

1шт.

4

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 25

1шт.

5

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

6

814-5025

BOLT,Hex, M5 x 0.8 x 25mm, Cl 8.8

1шт.

7

47557243

SENSOR

Fan Speed

1шт.

8

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 26

1шт.

9

8500183

FLEXIBLE HOSE

Drain

1шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

12

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 24

1шт.

13

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

14

84603263

GUARD

LH, 821G T4

1шт.

14

84247469

GUARD

LH, 821G T2

1шт.

15

232-2448

NUT,1/2"-20, GC

1шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

17

8500186

GROMMET

2шт.

18

87347864

GUARD

RH

1шт.

19

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

20

892-11008

LOCK WASHER,8mm ID

4шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

22

87700025

FAN,8 Blades, 711.2mm OD

1шт.

23

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

24

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
