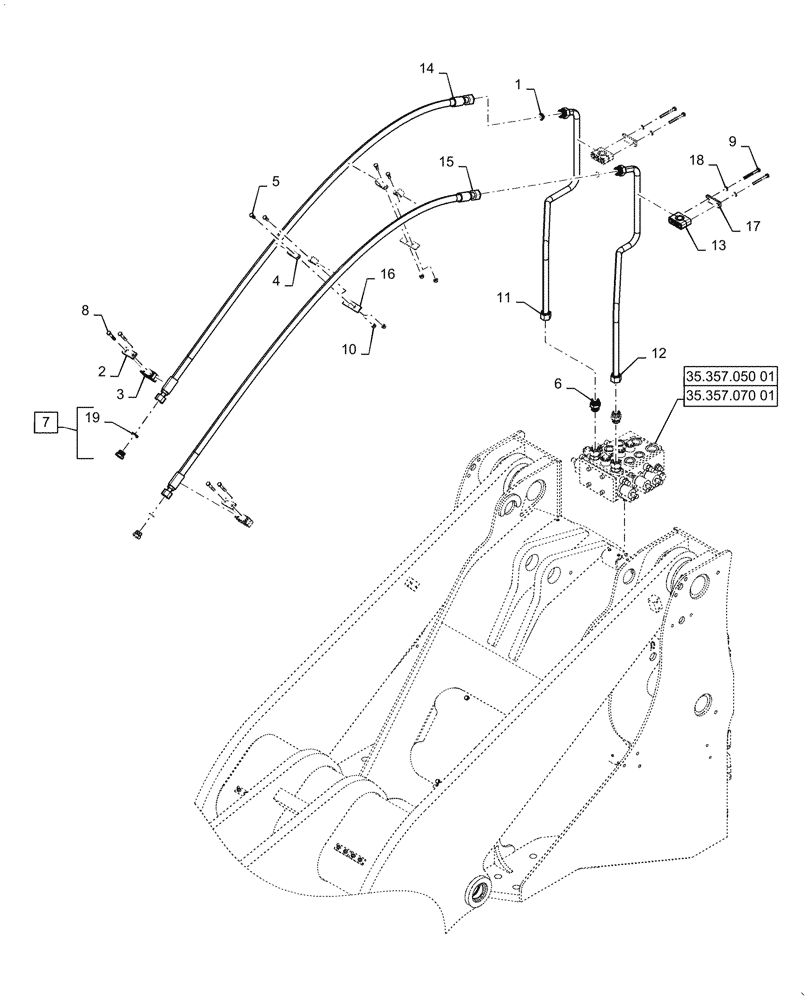

Запчасти Case 821G (35.701.030[01]) - VAR - 734053, 734054, 734055 - THIRD SPOOL AUXILIARY LINE INSTALLATION, XR / LR (35) - HYDRAULIC SYSTEMS

1

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

2

367658A1

PLATE

Clamp Cover

2шт.

3

87559358

RETAINER COLLAR

Tube Mounting

2шт.

4

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

4шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

6

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

2шт.

7

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl 19

2шт.

8

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

9

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

84234427

HYD TUBE

Right Hand

1шт.

12

84234429

HYD TUBE

Left Hand

1шт.

13

84240207

ASSEMBLY

2шт.

14

84307343

HYDRAULIC HOSE,19.05mm ID x 2210mm L, SAE 100R12

Accessory

1шт.

15

84364928

HYDRAULIC HOSE

Accessory

1шт.

16

84374039

BRACKET

2шт.

17

8500858

PLATE

Clamp Cover

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
