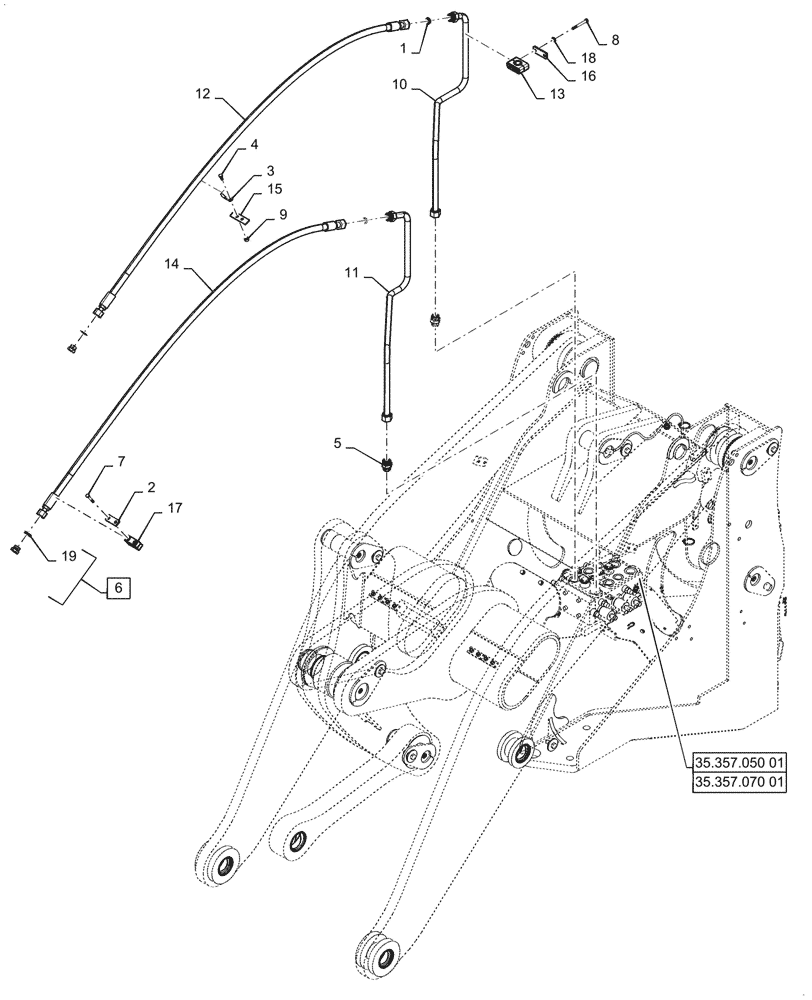

Запчасти Case 821G (35.701.020[01]) - VAR - 734053, 734054, 734055 - THIRD SPOOL AUXILIARY LINE INSTALLATION, Z-BAR (35) - HYDRAULIC SYSTEMS

1

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

2

367658A1

PLATE

Clamp Cover

2шт.

3

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

4шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

5

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

2шт.

6

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl 19

2шт.

7

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

8

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

10

84234427

HYD TUBE

Right Hand

1шт.

11

84234429

HYD TUBE

Left Hand

1шт.

12

84240200

HOSE ASSY.

Accessory

1шт.

13

84240207

ASSEMBLY

2шт.

14

84368617

HOSE ASSY.

Accessory

1шт.

15

84374039

BRACKET

2шт.

16

8500858

PLATE

Clamp Cover

2шт.

17

87559358

RETAINER COLLAR

Tube Mounting

2шт.

18

892-11010

LOCK WASHER,M10

4шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
