(35.359.020[02]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, Z-BAR / XR / LR

Запчасти Case 821G (35.359.020[02]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

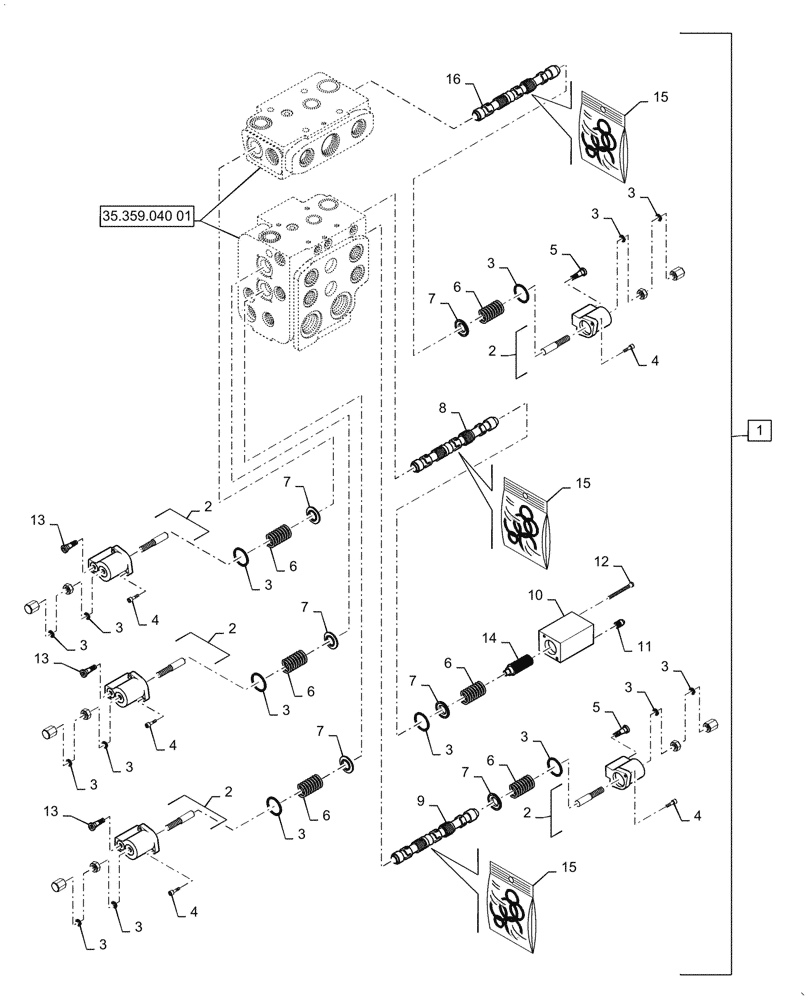

Схема запчастей Case 821G - (35.359.020[02]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS
35.359.040 01
6
16
7
2
5
2
3
3
13
4
4
6
7
15
3
10
3
4
15
15
3
2
8
6
2
2
3
3
7
3
3
7
3
5
6
3
7
6
3
3
11
9
3
3
6
13
1
13
4
3
7
14
12
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84240719

VALVE

Three Spool, Z-bar/ XR / LR, Incl 2 - 16

1шт.

2

84351602

CAP COVER

Spool Endcap

5шт.

3

8602927

SEAL KIT

For Main Housing (Includes 29 O-rings)

1шт.

4

84351618

HEX SOC SCREW,M6 x 16mm

10шт.

5

8604578

CHECK VALVE

Piston, Pilot Shuttle, M12 x 1,5

2шт.

6

47728029

SPRING

6шт.

7

47728035

RETAINER

Centering

6шт.

8

87347209

SPOOL

Boom (A2, B2)

1шт.

9

87347210

SPOOL

Bucket (A1, B1)

1шт.

10

87311762

COVER

Spool Endcap

1шт.

11

87311766

PLUG

2шт.

12

47727996

SCREW

2шт.

13

8602924

CARTRIDGE

Throttle

3шт.

14

87311768

SPRING

Compression for Float

1шт.

15

84351625

SEAL KIT

3шт.

16

84351622

SPOOL

Option (A3, B3)

1шт.
