(35.357.050[01]) - VAR - 734053, 734054 - CONTROL VALVE, MOUNTING - 3 SPOOL, Z-BAR / XR / LR

Запчасти Case 821G (35.357.050[01]) - VAR - 734053, 734054 - CONTROL VALVE, MOUNTING - 3 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

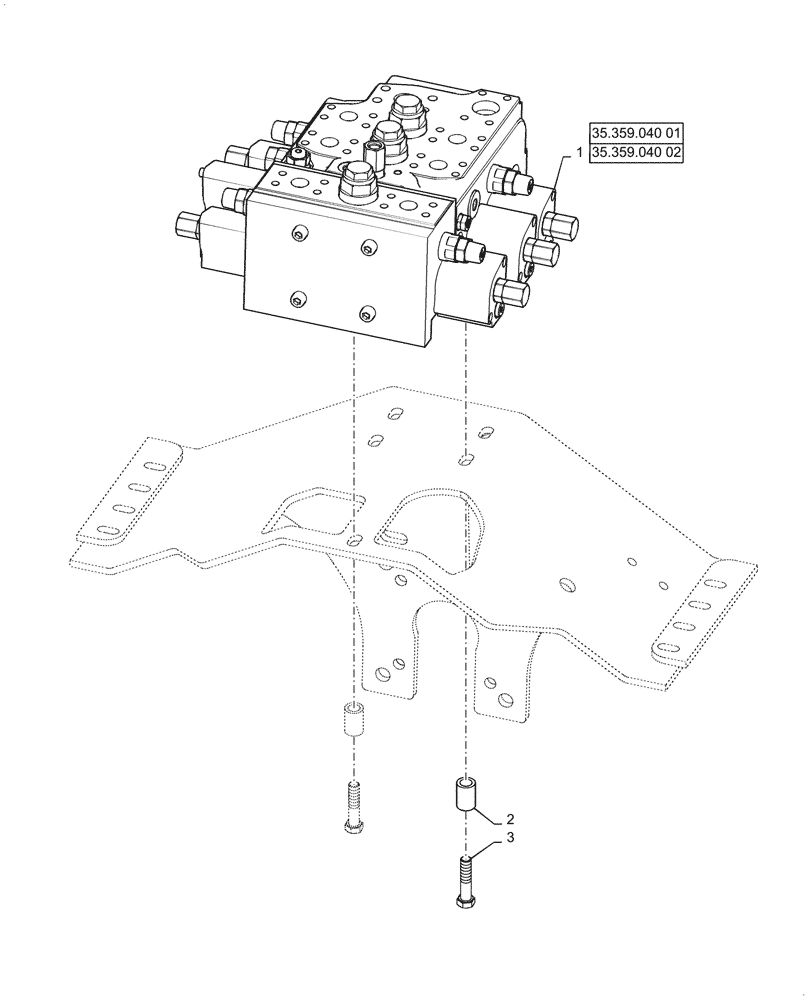

Схема запчастей Case 821G - (35.357.050[01]) - VAR - 734053, 734054 - CONTROL VALVE, MOUNTING - 3 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS
35.359.040 02
3
2
1
35.359.040 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84240719

VALVE

Three Spool, Z-BAR / XR / LR

1шт.

2

A27328

SPACER

3шт.

3

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

3шт.

Выбрано товаров: 3
