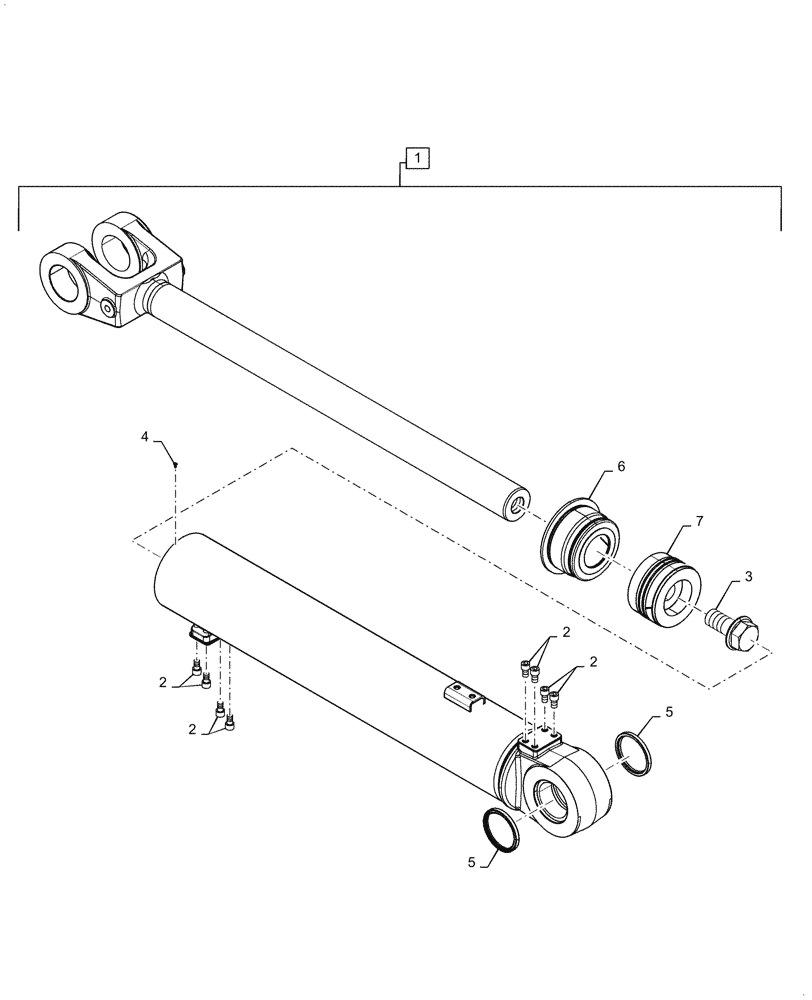

Запчасти Case 821G (35.100.020) - LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

84244454

LIFT CYLINDER,Double Acting, 76.2mm Rod, 845.7mm Stroke

Incl 2 - 7

1шт.

2

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

8шт.

3

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

1шт.

4

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

5

365523A1

WIPER SEAL

82.5

2шт.

6

84244440

GLAND

1шт.

7

84244443

PISTON

1шт.
