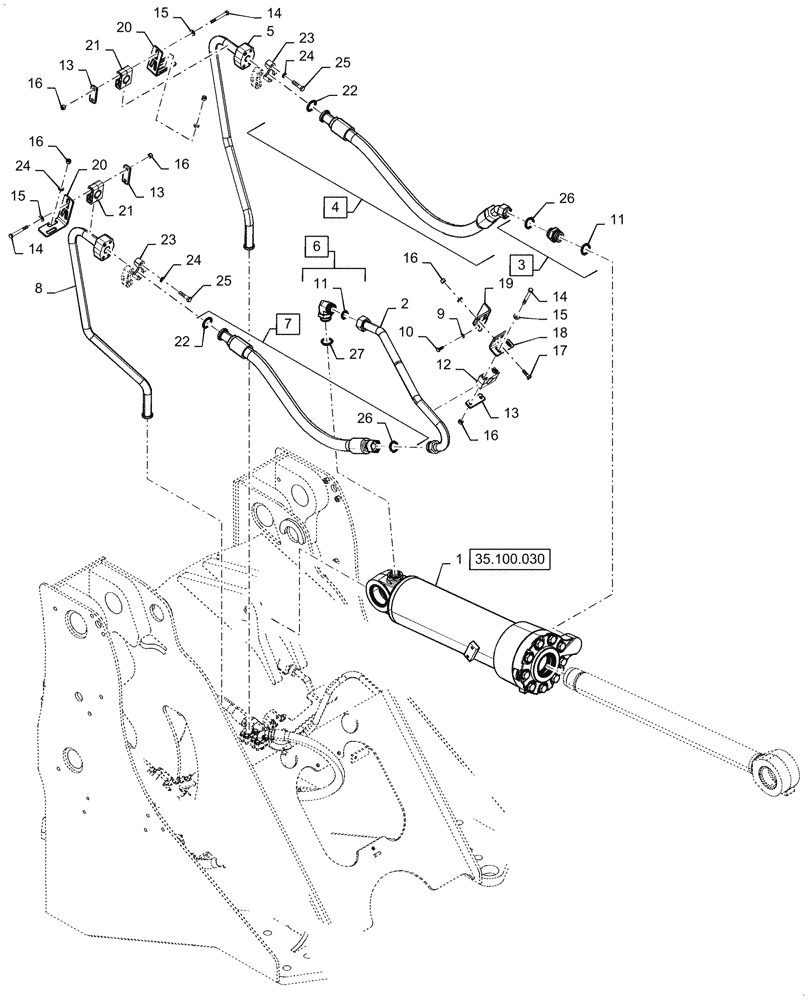

Запчасти Case 821G (35.100.010[02]) - TILT CYLINDER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87337180

CYLINDER ASSY.,Double Acting, 88.9mm Rod, 599.6mm Stroke

Tilt Cylinder, Z-Bar

1шт.

1

87696086

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 599.6mm Stroke

Tilt Cylinder, XR

1шт.

2

84234419

HYD TUBE

836mm L

1шт.

3

84164190

HYD CONNECTOR

Incl 11, 26

1шт.

4

48010252

HOSE

1180mm L, Incl, 26, 22

1шт.

5

84477542

HYD TUBE

1140mm L

1шт.

6

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl, 11, 27

1шт.

7

48010253

HOSE

945mm L, Incl, 26, 22

1шт.

8

84477539

HYD TUBE

1137mm L

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

11

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

12

87452747

CLAMP,33.4mm ID

1шт.

13

8500858

PLATE

3шт.

14

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

6шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

12шт.

17

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

18

47950652

BRACKET

Bracket, Tilt Tube

1шт.

19

47950651

BRACKET

Bracket, Tilt Tube

1шт.

20

47946719

BRACKET

2шт.

21

84240210

CLAMP,16mm ID

2шт.

22

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

23

86980733

CLAMP

4шт.

24

892-11012

LOCK WASHER,M12

8шт.

25

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

26

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

27

637-64446

O-RING,2.9mm Thk x 44.6mm ID, Cl 6, 90 Duro

1шт.
