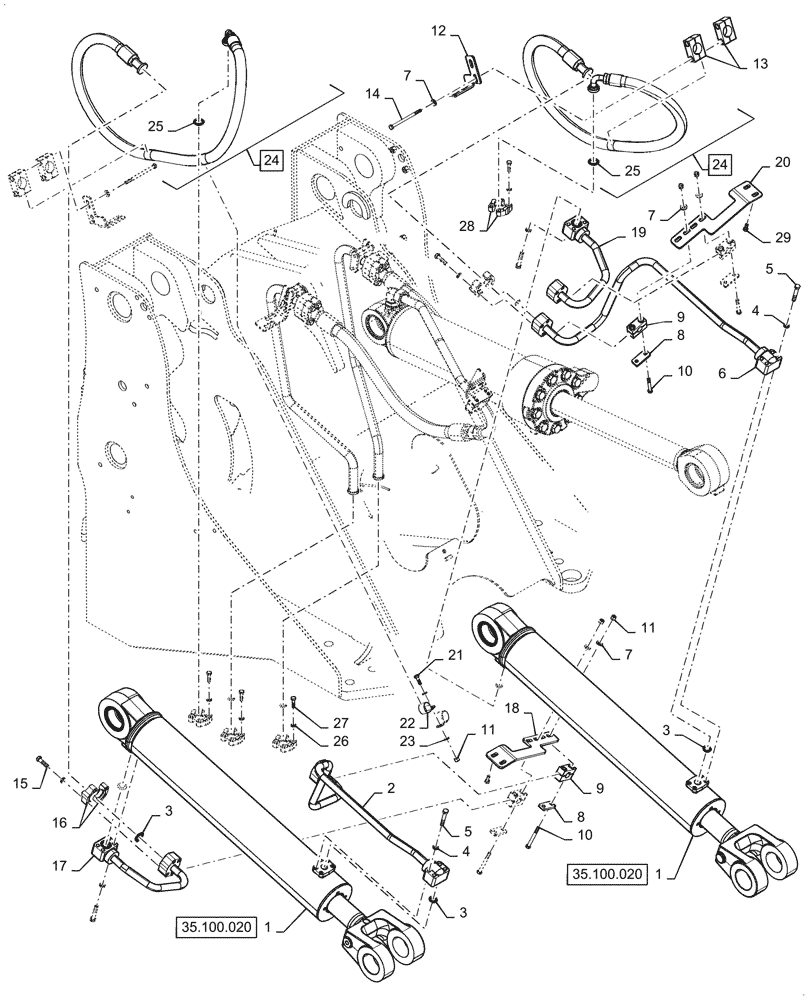

Запчасти Case 821G (35.100.010[01]) - LIFT CYLINDER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84244454

LIFT CYLINDER,Double Acting, 76.2mm Rod, 845.7mm Stroke

2шт.

2

48010238

TUBE

Lift Cylinder Rod, RH, 1332mm L

1шт.

3

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

6шт.

4

892-11012

LOCK WASHER,M12

16шт.

5

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

16шт.

6

48010245

TUBE

Lift Cylinder Rod, LH, 1332mm L

1шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

8

367658A1

PLATE

4шт.

9

367489A1

BLOCK

Tube Mounting

4шт.

10

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

8шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

12

48012966

BRACKET

Ride Control Tube Support

2шт.

13

87444561

BLOCK

4шт.

14

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

4шт.

15

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

16

86980732

CLAMP

4шт.

17

48010241

TUBE

Lift Cylinder Base, RH, 525mm L

1шт.

18

48010260

BRACKET

Lift Tube Mount, RH

1шт.

19

48010248

TUBE

Lift Cylinder Base, LH, 524mm L

1шт.

20

48010259

BRACKET

Lift Tube Mount, LH

1шт.

21

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

22

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

2шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

24

48010254

HOSE

Lift Cylinder, 1920mm L, Incl, 25

2шт.

25

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

4шт.

26

892-11010

LOCK WASHER,M10

16шт.

27

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

28

86980731

CLAMP

8шт.

29

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.
