Запчасти Case 821G (33.202.020[03]) - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

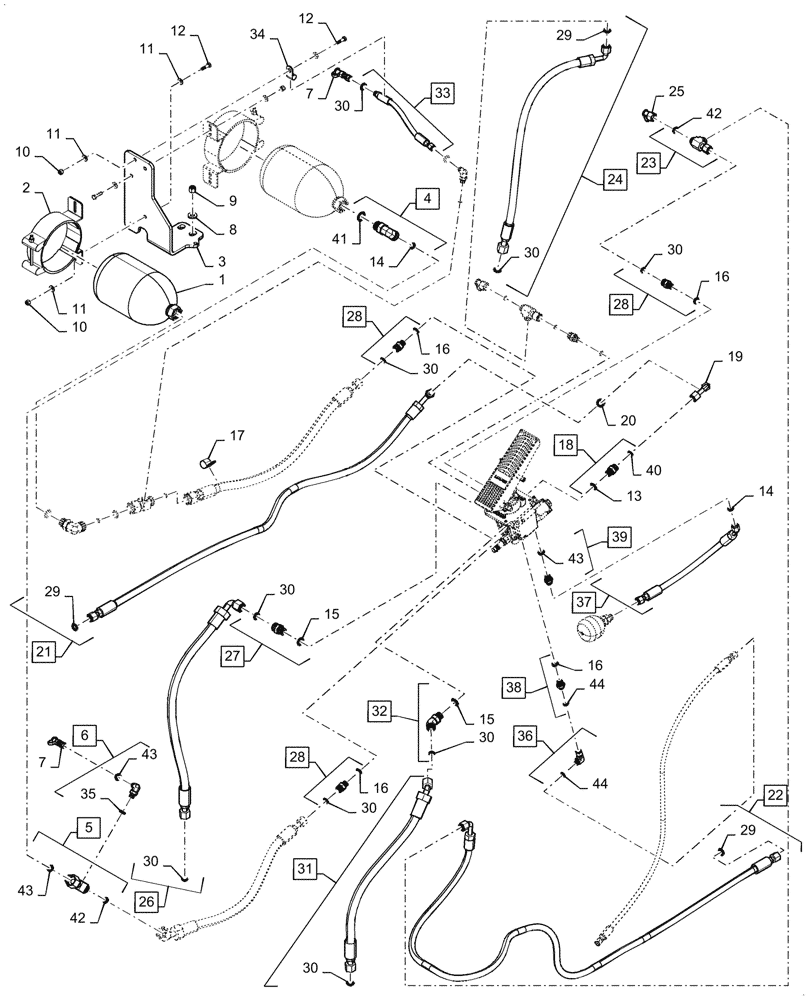

Схема запчастей Case 821G - (33.202.020[03]) - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS
7
13
28
29
43
30
16
14
11
44
10
9
16
30
1
39
30
30
37
19
20
42
29
43
25
12
17
30
23
32
4
28
41
7
14
16
34
8
16
21
24
11
30
3
18
31
30
22
11
40
2
43
26
10
28
30
35
15
15
38
29
6
36
12
30
44
5
42
33
27

Артикул

Название

Примечание

Количество

1

87728740

ACCUMULATOR

Service Brake

2шт.

2

8501315

CLAMP,167mm - 175mm

2шт.

3

47857657

BRACKET

Brake Accumulator

1шт.

4

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl, 41, 14

1шт.

5

372033A1

FITTING

Incl, 42, 43

2шт.

6

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl, 43, 35

2шт.

7

190117A1

COUPLING

2шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

12

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

5шт.

13

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

15

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

17

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

18

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl, 13, 40

1шт.

19

47672852

TUBE

Brake to Tank

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

47857577

HOSE

Return, Brake Valve to Tank, 1630mm L, Incl 29

1шт.

22

47857571

HOSE

Brake Front Supply, Axle, 2678mm L, Incl 29

1шт.

23

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl, 42

2шт.

24

48026572

HOSE

Rear Axle Brake, 855mm L, Incl 29, 30

1шт.

25

190316A1

COUPLING

2шт.

26

47857574

HOSE

Brake Valve Discharge, 795mm L, Incl, 30

1шт.

26

47858458

HOSE

Brake Valve Discharge, 795mm, Incl, 30

1шт.

27

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl, 30, 15

1шт.

28

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl, 30, 16

4шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

30

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

31

48028301

HOSE

Brake Valve Inlet, 710mm L, Incl, 30

1шт.

32

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl, 15, 30

1шт.

33

47884382

HOSE

Remote Test Port, 290mm L, Incl 30

1шт.

34

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

35

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

36

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl, 44

1шт.

37

47857576

HOSE

Parking Brake Accumulator, 460mm L, Incl, 14

1шт.

38

84294527

HYD CONNECTOR,M16 x 1.5 ORB x 9/16" - 18 ORFS

Incl, 16, 44

1шт.

39

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl, 43

1шт.

40

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

41

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

42

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

43

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

44

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 45
