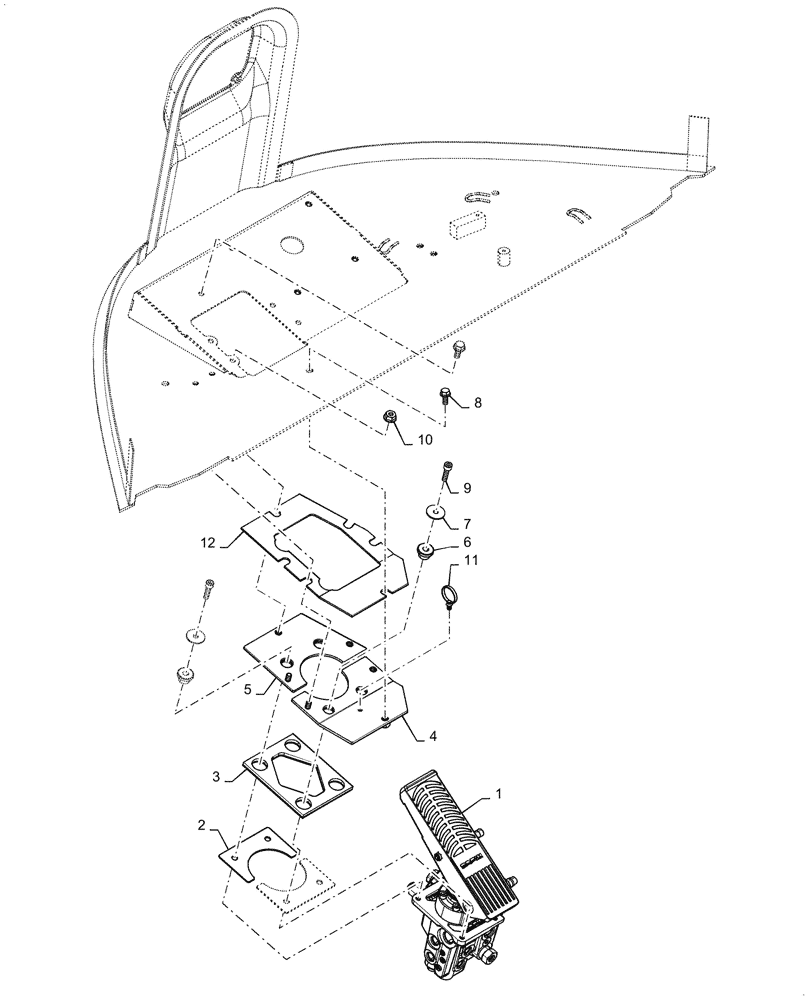

Запчасти Case 821G (33.202.010) - VAR - 424224 - BRAKE CONTROL VALVE INSTALLATION (33) - BRAKES & CONTROLS

1

47914916

BRAKE VALVE

4 Speed 76 Bar

1шт.

2

47392803

MOUNTING PLATE

Brake Valve

2шт.

3

47391808

GASKET

Brake Valve

1шт.

4

47388301

MOUNTING PLATE

Mounting, Brake Valve Rear

1шт.

5

47866006

PLATE

Mounting, Brake Valve Front

1шт.

6

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

Mount, Radiator

4шт.

7

76303506

WASHER

8.3 x 32 x 2

4шт.

8

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

9

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4шт.

10

825-5145

NUT,M5, Flg Ser

2шт.

11

87668737

CABLE TIE,203.2mm L, Nylon, Black

1шт.

12

48134925

GASKET

1шт.
