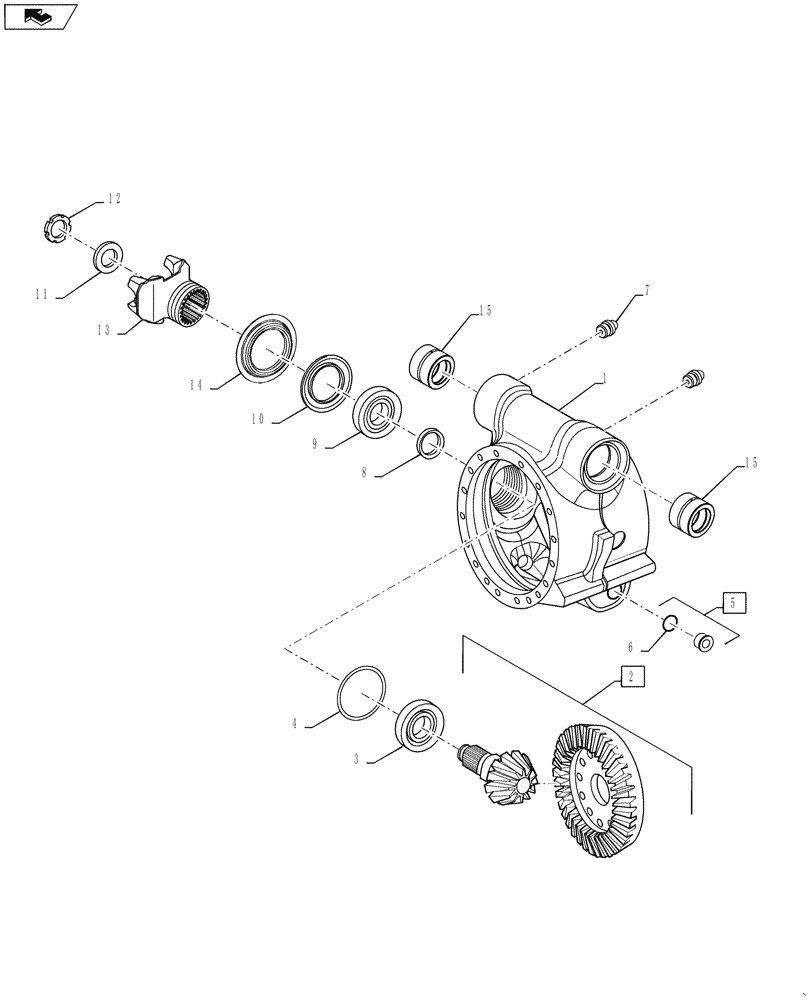

Запчасти Case 821G (27.106.030) - VAR - 782122, 424235 - REAR AXLE DIFFERENTIAL CARRIER STANDARD AND HEAVY DUTY (27) - REAR AXLE SYSTEM

1

84353901

AXLE HOUSING

Drive

1шт.

2

84353908

GEAR SET

Bevel

1шт.

3

87757170

ROLLER BEARING,70mm ID x 140mm OD x 39mm W

1шт.

4

8603238

SHIM,0.1mm Thk

1шт.

4

8603237

SHIM,0.2mm Thk

1шт.

4

8603236

SHIM,1.5mm Thk

1шт.

4

8603235

SHIM,1.4mm Thk

1шт.

4

8603234

SHIM,1.3mm Thk

1шт.

4

8603233

SHIM,1.2mm Thk

1шт.

4

8603232

SHIM,1.1mm Thk

1шт.

4

8603231

SHIM,1mm Thk

1шт.

4

8603230

SHIM,0.9mm Thk

1шт.

4

8603229

SHIM,0.8mm Thk

1шт.

4

8603228

WASHER,0.7mm Thk

1шт.

5

84262309

PLUG

1шт.

6

8605636

O-RING,2.2mm Thk x 33mm ID

1шт.

7

84353904

LUBE NIPPLE

2шт.

8

384457A1

SPACER,8.18mm Thk

1шт.

8

384455A1

SPACER,8.16mm Thk

1шт.

8

384454A1

SPACER,8.14mm Thk

1шт.

8

384452A1

SPACER,8.12mm Thk

1шт.

8

384451A1

SPACER,8.08mm Thk

1шт.

8

384450A1

SPACER,8.06mm Thk

1шт.

8

384449A1

SPACER,8.04mm Thk

1шт.

8

384448A1

SPACER,8.02mm Thk

1шт.

8

384447A1

SPACER,7.98mm Thk

1шт.

8

384446A1

SPACER,7.96mm Thk

1шт.

8

384444A1

SPACER,7.94mm Thk

1шт.

8

384443A1

SPACER,7.92mm Thk

1шт.

8

384441A1

SPACER,7.88mm Thk

1шт.

8

384440A1

SPACER,7.86mm Thk

1шт.

8

384439A1

SPACER,7.84mm Thk

1шт.

8

384438A1

SPACER,7.82mm Thk

1шт.

8

384436A1

SPACER,7.8mm Thk

1шт.

9

84353905

ROLLER BEARING,60mm ID x 125mm OD x 37mm W

1шт.

10

373828A1

SEAL,90mm ID x 140mm OD x 12mm Thk

Shaft

1шт.

11

119981A1

THRUST WASHER,51mm ID x 76.5mm OD x 5mm Thk

1шт.

12

119984A1

SLOTTED NUT

Slotted

1шт.

13

373829A1

FLANGE

Input

1шт.

14

48028415

SHIELD

1шт.

15

84353902

BEARING ASSY

2шт.
