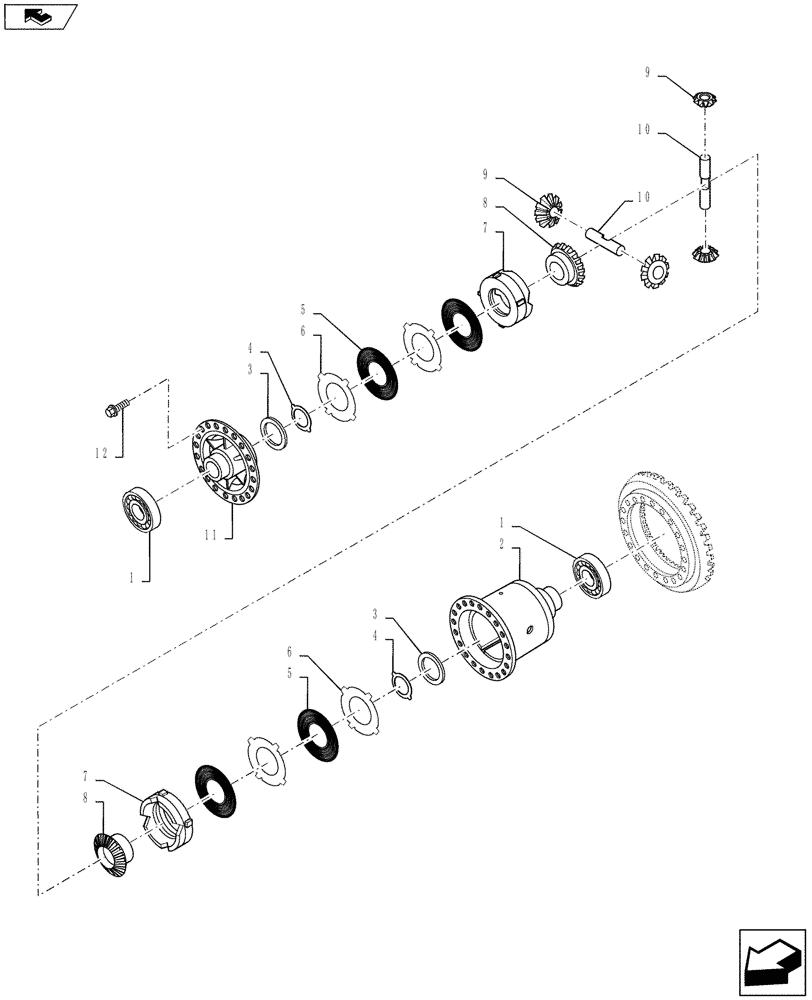

Запчасти Case 821G (27.106.020) - VAR - 782122 - REAR DIFFERENTIAL ASSEMBLY, STANDARD (27) - REAR AXLE SYSTEM

1

84330535

TAPERED BEARING

2шт.

2

84330533

AXLE HOUSING

1шт.

3

120019A1

THRUST WASHER

Thrust

2шт.

4

120017A1

THRUST WASHER

Thrust

2шт.

5

242159A1

CLUTCH PLATE

Inner

4шт.

6

87454125

DISC

Outer; 3.00 mm Thick

1шт.

6

87454126

DISC

Outer; 2.70 mm Thick

1шт.

6

87454127

DISC

Outer; 2.90 mm Thick

1шт.

6

87454128

DISC,3.1mm Thk

Outer; 3.10 mm Thick

1шт.

6

87454129

DISC,3.2mm Thk

Outer; 3.20 mm Thick

1шт.

6

87454130

DISC

Outer; 3.30 mm Thick

1шт.

6

84196678

CLUTCH DISC

Outer; 3.50 mm Thick

1шт.

7

243354A1

THRUST RING

2шт.

8

242160A1

PINION

Differential Gear

2шт.

9

120018A1

PINION

Differential Gear; Side

4шт.

10

120020A1

PIN

Differential Axle Pinion

2шт.

11

84330534

PROTECTIVE COVER

Housing

1шт.

12

184716A1

SCREW

20шт.
