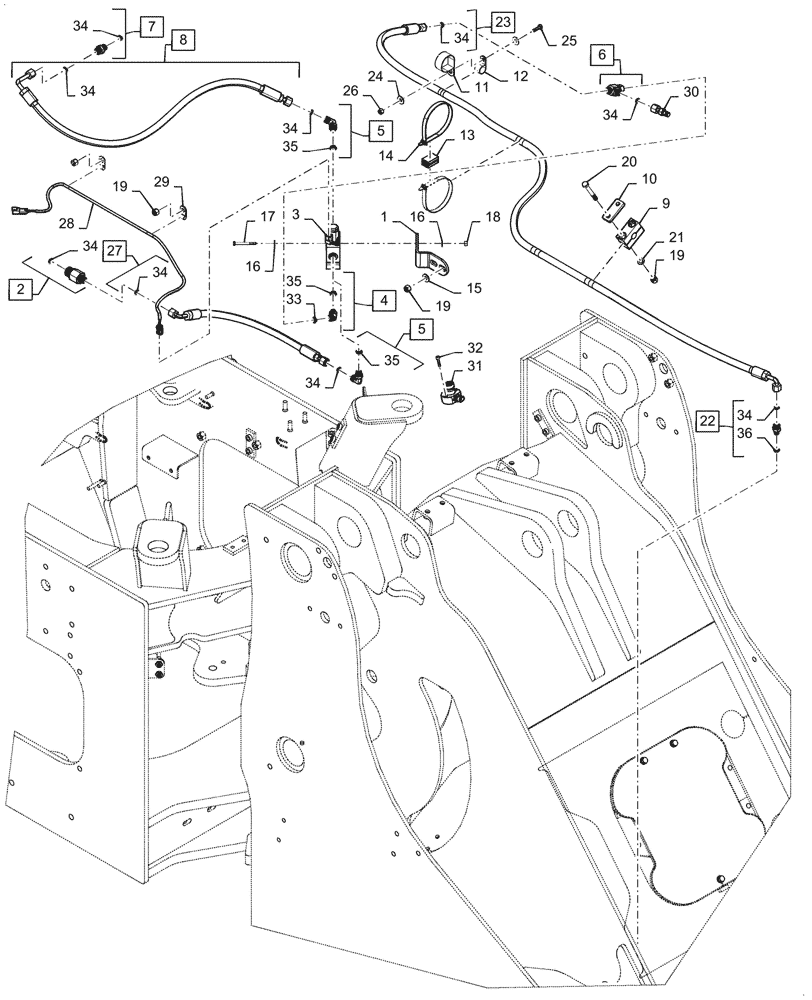

Запчасти Case 821G (27.106.010) - DIFFERENTIAL LOCK LINES (27) - REAR AXLE SYSTEM

1

47863028

BRACKET

Differential Lock Valve

1шт.

2

84273235

END FITTING

Incl, 34

1шт.

3

84300976

LOCK VALVE

1шт.

4

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl, 33,35

1шт.

5

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl, 34, 35

2шт.

6

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl, 34

1шт.

7

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl, 34

1шт.

8

84273193

HOSE ASSY.

Differential Lock Valve, Pressure, 1038mm L, Incl 34

1шт.

9

379374A1

BLOCK

Tube Mounting

2шт.

10

NSS

NOT SOLD SEPARAT

Plate, Clamp Cover

2шт.

11

515-25508

CLAMP,2", Insul, 1/2" Bolt

1шт.

12

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

13

84266053

TUBE SPACER

1шт.

14

84266050

CABLE TIE,384mm L, Polyamide

2шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

16

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

17

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

18

832-10406

NUT,M6 x 1, Cl 8

2шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

20

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

22

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Incl, 34, 36

1шт.

23

84273194

HOSE ASSY.

Differential Lock Axle, Pressure2335mm L, Incl 34

1шт.

24

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

27

84273194

HOSE ASSY.

Differential Lock Valve, Return, 2335mm L, Incl 34

1шт.

28

84301377

HARNESS

Jumper, Differential Lock

1шт.

29

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

30

190119A1

COUPLING

Diagnostic

1шт.

31

84313033

DIFF LOCK SWITCH

Foot

1шт.

32

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

36

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
