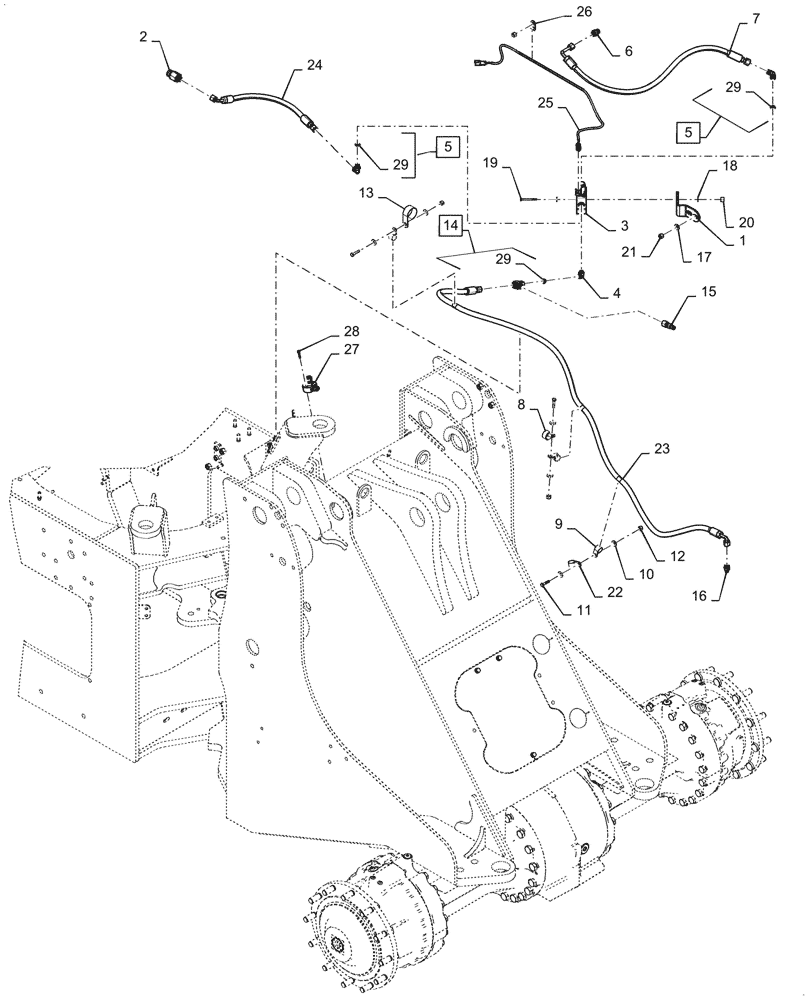

Запчасти Case 721G (25.102.060) - VAR - 424235 - DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM

1

47863028

BRACKET

Axle Differential Lock Valve

1шт.

2

84273235

END FITTING

Differential Lock Return

1шт.

3

84300976

LOCK VALVE

Differential Lock Solenoid

1шт.

4

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

5

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl, 29

2шт.

6

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

1шт.

7

84273193

HOSE ASSY.

Differential Lock Valve, Pressure, 1038mm L

1шт.

8

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

9

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

3шт.

10

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

6шт.

11

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

3шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

13

515-25508

CLAMP,2", Insul, 1/2" Bolt

1шт.

14

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl, 29

1шт.

15

190119A1

COUPLING

Diagnostic

1шт.

16

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

1шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

18

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

19

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

20

832-10406

NUT,M6 x 1, Cl 8

2шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

22

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

23

84273194

HOSE ASSY.

Differential Lock Valve, Pressure, 2335mm L

1шт.

24

84273191

HOSE ASSY.

Differential Lock Valve, Return, 548mm L

1шт.

25

84301377

HARNESS

Differential Lock, Jumper

1шт.

26

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

27

84313033

DIFF LOCK SWITCH

1шт.

28

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

29

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.
