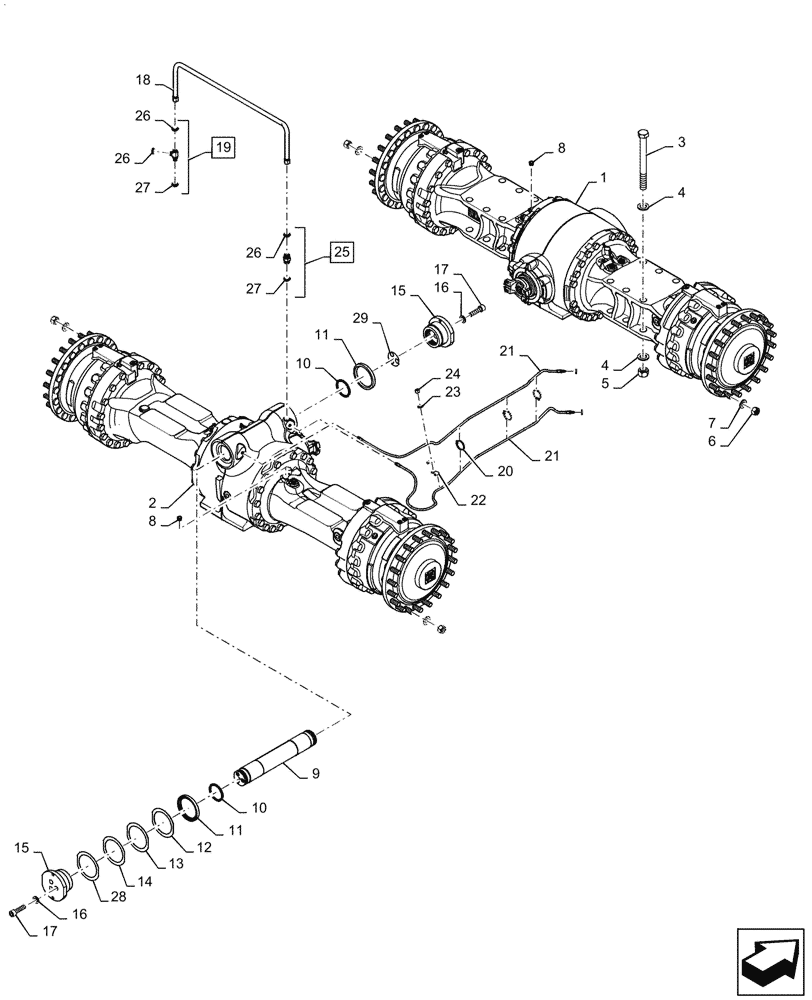

Запчасти Case 721G (25.102.020) - VAR - 782122 - STANDARD FRONT AND REAR AXLE INSTALLATION (25) - FRONT AXLE SYSTEM

1

47893530

AXLE

Rear, Limited Slip

1шт.

2

84234380

4WD AXLE ASSY

Front, Limited Slip

1шт.

3

84227514

CAP

End

1шт.

4

84227515

CAP

End

1шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

6

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

4шт.

7

84215452

SHIM,122.5mm ID x 157mm OD x 0.5mm Thk

1шт.

8

84215453

SHIM,122.5mm ID x 157mm OD x 1mm Thk

1шт.

9

84215454

SHIM,122.5mm ID x 157mm OD x 1.5mm Thk

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

11

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

48шт.

12

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

48шт.

13

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

16шт.

14

829-1424

NUT,M24, Cl 10

8шт.

15

827-24160

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

8шт.

16

84227513

PIVOT PIN

Axle

1шт.

17

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

19

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 28, 29

1шт.

20

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 28, 29

1шт.

21

87628241

TUBE,10.22 mm ID x 12.7 mm OD x 480, 174 mm L

Rear Axle

1шт.

22

84258672

HOSE ASSY.,4.83mm ID x 2174mm L

Grease Axle Bearing

2шт.

23

F53473

LOCK NUT,1/8-27 NPSM

2шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

25

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

26

84477326

SEAL,99.4mm ID x 127.17mm OD x 14.5mm Thk

Grease

2шт.

27

47566244

BREATHER

Valve

2шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

29

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

30

47898476

SHIM

1шт.

31

48079453

SHIM

1шт.
