Запчасти Case 721G (10.500.020[01]) - DEF TANK INSTALLATION (10) - ENGINE

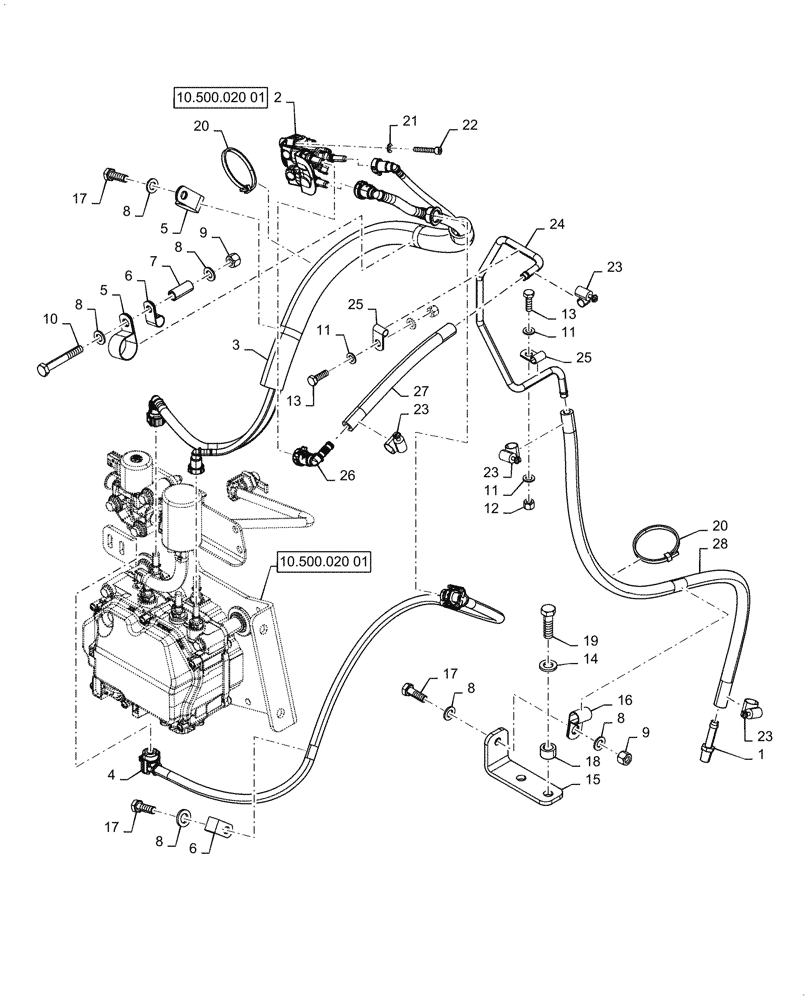

Схема запчастей Case 721G - (10.500.020[01]) - DEF TANK INSTALLATION (10) - ENGINE
10.500.020 01
4
25
18
19
24
1
2
13
26
7
23
8
21
20
17
3
8
6
8
16
22
10
8
9
27
8
23
23
13
11
11
6
12
14
5
23
25
20
15
5
8
11
28
17
9
17
10.500.020 01

Артикул

Название

Примечание

Количество

1

87584302

CLAMP,16mm - 19mm, Spring

2шт.

2

84466547

HEATER VALVE

DEF

1шт.

3

47565936

MODULE

Denox Supply

1шт.

3

47565936R

REMAN-MODULE

Denox Supply

1шт.

3

47565936C

CORE-MODULE

Return Number

1шт.

4

47654964

HOSE

DEF Hose Bundle, From Tank to Supply Module

1шт.

5

47491588

BRACKET

Supply Module

1шт.

6

2855150

INSULATOR BLOCK

Bushing, Rubber

6шт.

7

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

11

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

13

827-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

3шт.

14

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

17

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

21

84299672

BRACKET

DEF Tank

1шт.

22

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

23

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

24

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

25

84345040

ADAPTER

246 NG 12 to M16 X 1.5

1шт.

26

47603472

HOSE

Coolant, Engine to Valve

1шт.

27

47647833

BRACKET

Fuel Filter Mount

1шт.

28

47437399

FUEL FILTER

Fuel Tank Vent

1шт.

29

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.

30

84323524

HOSE

Heater, 459.45mm Lg

1шт.

Выбрано товаров: 32
