Запчасти Case 721G (10.400.040[01]) - COOLING SYSTEM LINE INSTALLATION (10) - ENGINE

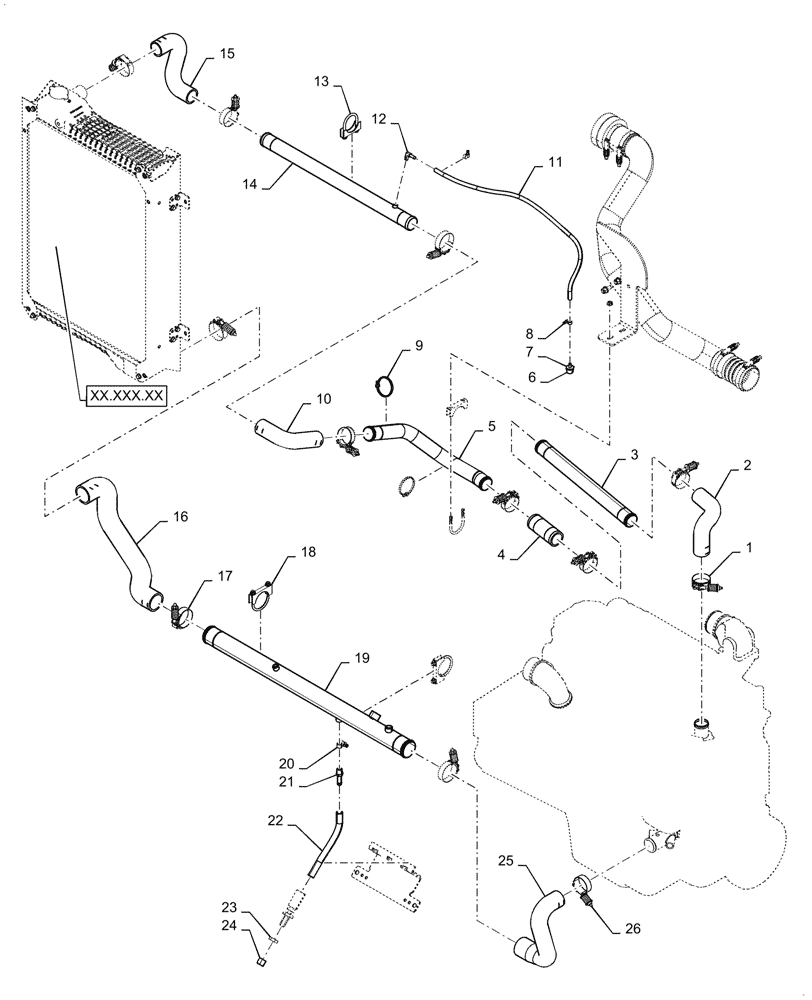

Схема запчастей Case 721G - (10.400.040[01]) - COOLING SYSTEM LINE INSTALLATION (10) - ENGINE
1
15
18
25
19
14
3
4
16
22
26
xx.xxx.xx
8
17
9
6
21
20
12
13
7
2
23
11
24
5
10

Артикул

Название

Примечание

Количество

1

47994367

CLAMP

49.2mm min x 57.0mm max

8шт.

2

47976844

HOSE

Engine Coolant, Thermostat

1шт.

3

48004971

TUBE

Engine Coolant, Top, Short

1шт.

4

47976845

HOSE

Engine Coolant Coupler

1шт.

5

47377570

TUBE

Top Coolant

1шт.

6

345-87

SEALANT

1шт.

7

87635840

VALVE

Check Venting

1шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

10

47976846

HOSE

Elbow

1шт.

11

87552499

HOSE,6.40 mm ID x 1150.00 mm

Breather, Bulk 31-1182

1шт.

12

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

13

382189A1

CLAMP

2шт.

14

84293052

TUBE

Top Coolant, Standard

1шт.

14

84293052

TUBE

Top Coolant, Heavy Duty

1шт.

15

47976847

HOSE

Radiator, Upper

1шт.

16

47976841

HOSE

Radiator, Lower

1шт.

17

47934774

CLAMP,63.5mm - 71.4mm, Spring

3шт.

18

393632A1

CLAMP

U-Bolt 2.25mm

2шт.

19

47803571

TUBE

Bottom Coolant

1шт.

20

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

21

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

22

87536091

HOSE ASSY.

Remote Coolant Drain

1шт.

23

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

24

218-755

CAP,37 Degree, 3/4"-16

1шт.

25

47976839

HOSE

Engine Coolant Bottom

1шт.

26

47973117

CLAMP

52.3mm min x 60.2mm max

1шт.

Выбрано товаров: 27
