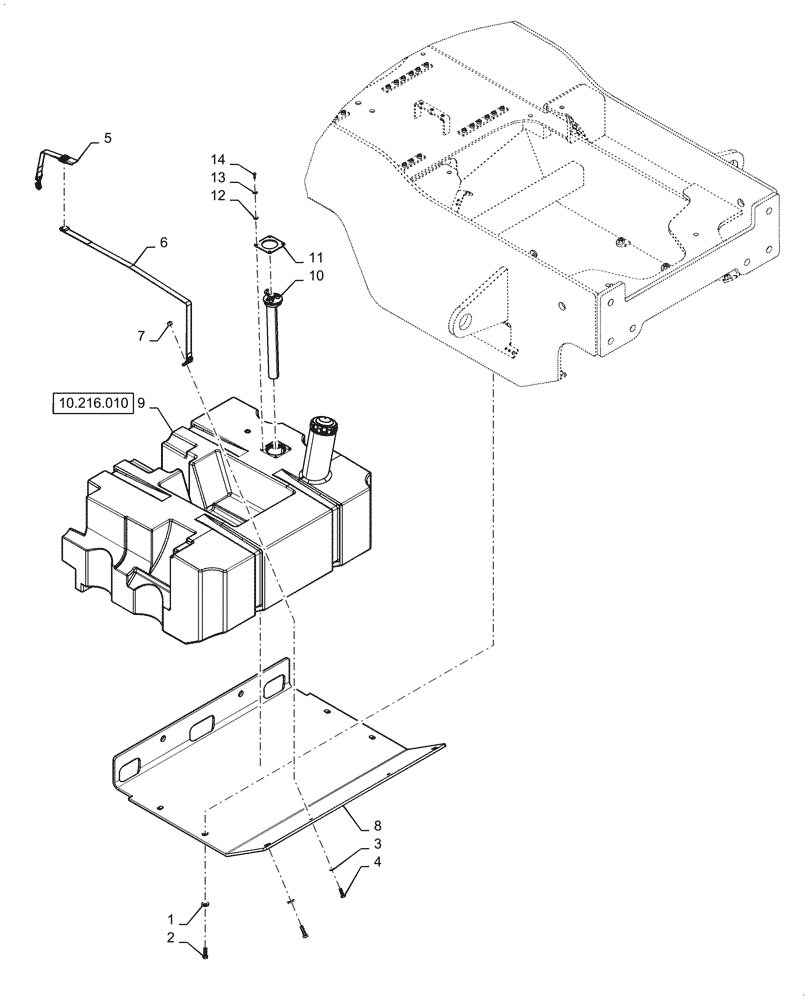

Запчасти Case 721G (10.216.020) - FUEL TANK INSTALLATION, HEAVY COUNTERWEIGHT (10) - ENGINE

1

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

2

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

5

366905A1

SECURING STRAP

Short

2шт.

6

366904A1

SECURING STRAP

Long

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

8602249

PLATE

Fuel Tank

1шт.

9

47945769

FUEL TANK

267L, 70 Gallon

1шт.

10

47936054

SENSOR

Fuel Level

1шт.

11

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

13

893-11006

LOCK WASHER,Ext Tooth, M6

4шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.
