(10.102.030[01]) - VAR - 782440 - DRIVE BELT COVER, W/ AIR CONDITIONING

Запчасти Case 721G (10.102.030[01]) - VAR - 782440 - DRIVE BELT COVER, W/ AIR CONDITIONING (10) - ENGINE

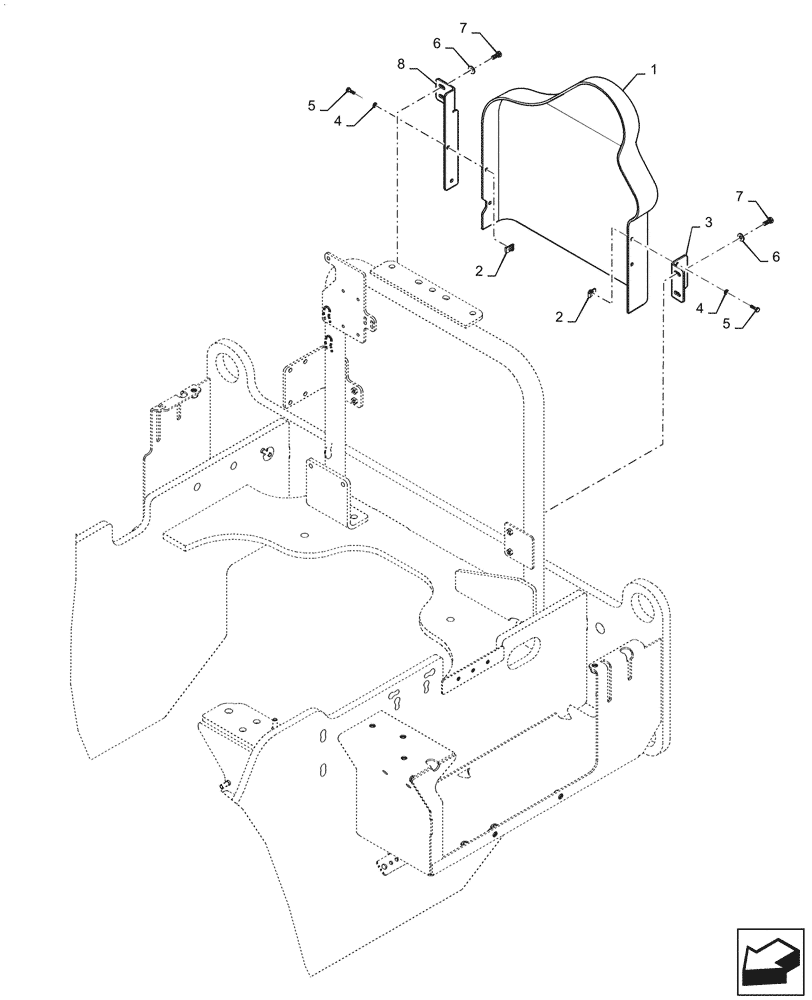

Схема запчастей Case 721G - (10.102.030[01]) - VAR - 782440 - DRIVE BELT COVER, W/ AIR CONDITIONING (10) - ENGINE
2
8
1
4
7
7
2
3
6
5
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47502435

GUARD

Engine Accessory, W/ A/C

1шт.

2

833-40306

SPRING NUT,M6, U

4шт.

3

47638278

BRACKET

LH, Engine Guard

1шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

8

47638281

BRACKET

RH, Engine Guard

1шт.

Выбрано товаров: 8
