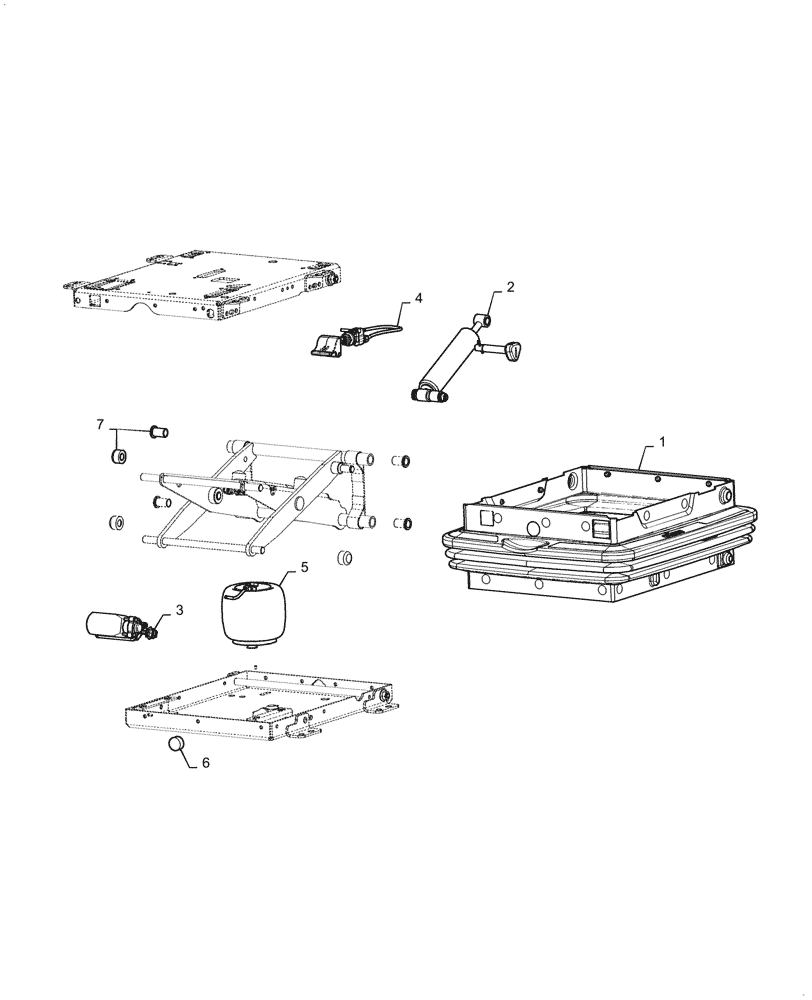

Запчасти Case 721G (90.124.010[01]) - VAR - 734063, 734073 - SEAT, AIR SUSPENSION SERVICE PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

48046598

Service Kit, Boot Service

KIT

1шт.

1

NSS

NOT SOLD SEPARAT

Boot, Incl in Service Kit 1

1шт.

1

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 1

21шт.

1

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small, Incl in Service Kit 1

2шт.

2

48046584

Service Kit, Damper Service

KIT

1шт.

2

NSS

NOT SOLD SEPARAT

Damper, Variable, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Damper Extension, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Knob, Damper, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Main Damper Bearing, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Main Damper Bearing, Bottom, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Flange Nut M8 x 1.25, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Retaining Ring, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 2

21шт.

2

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small, Incl in Service Kit 2

2шт.

3

48046599

Service Kit, Compressor Service

KIT

1шт.

3

NSS

NOT SOLD SEPARAT

Compressor, 24 Volt, Incl in Service Kit 3

1шт.

3

NSS

NOT SOLD SEPARAT

Tie Wrap, Incl in Service Kit 3

2шт.

3

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 3

21шт.

3

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small, Incl in Service Kit 3

2шт.

4

48046600

Service Kit, Air Valve Service

KIT

1шт.

4

NSS

NOT SOLD SEPARAT

Combination Air Valve, Incl in Service Kit 4

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Male Connector, Incl in Service Kit 4

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Tee to Switch, Incl in Service Kit 4

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Insert, Incl in Service Kit 4

2шт.

4

NSS

NOT SOLD SEPARAT

Paddle Grip, Incl in Service Kit 4

1шт.

4

NSS

NOT SOLD SEPARAT

Grip Mount Plate, Incl in Service Kit 4

1шт.

4

NSS

NOT SOLD SEPARAT

Pin Grip, Incl in Service Kit 4

1шт.

4

NSS

NOT SOLD SEPARAT

Compression Sleeve Nut, Incl in Service Kit 4

1шт.

5

48046601

Service Kit, Air Spring Service

KIT

1шт.

5

NSS

NOT SOLD SEPARAT

Air Spring, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Male Elbow Fitting, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Hex Head Cap Screw, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Socket Head Cap Screw, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Tee to Bag, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Insert, Incl in Service Kit 5

2шт.

5

NSS

NOT SOLD SEPARAT

Compression Sleeve, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 5

21шт.

5

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small, Incl in Service Kit 5

2шт.

6

48046606

Service Kit, Bumper Service

KIT

1шт.

6

NSS

NOT SOLD SEPARAT

Threaded Bumper, Incl in Service Kit 6

1шт.

6

NSS

NOT SOLD SEPARAT

Hedx Nut, M6 x 1, Incl in Service Kit 6

1шт.

6

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 6

21шт.

6

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small,

2шт.

7

48046588

Service Kit, Roller Brush Service.

KIT

1шт.

7

NSS

NOT SOLD SEPARAT

Roller, Incl in Service Kit 7

4шт.

7

NSS

NOT SOLD SEPARAT

Flange Bearing, Incl in Service Kit 7

4шт.

7

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 7

21шт.

7

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small, Incl in Service Kit 7

2шт.
