Запчасти Case 721G (90.120.130) - VAR - 734055 - JOYSTICK INSTALLATION, RIGHT SIDE W/ 2 AUX CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS

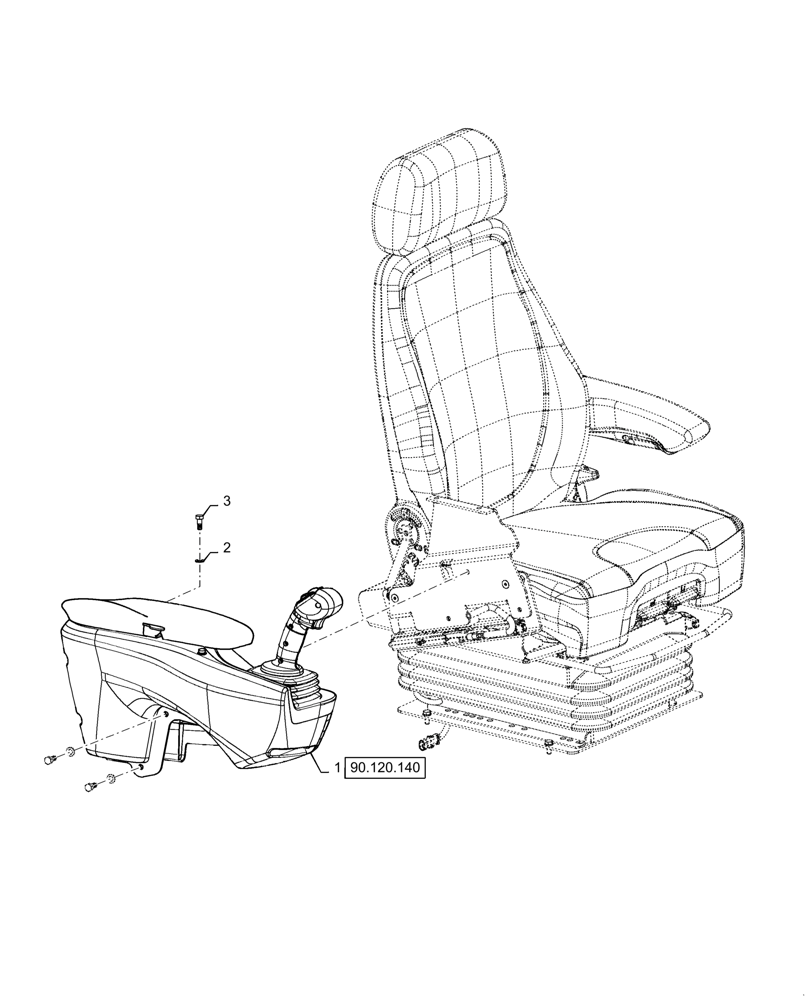

Схема запчастей Case 721G - (90.120.130) - VAR - 734055 - JOYSTICK INSTALLATION, RIGHT SIDE W/ 2 AUX CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.140
2
1
3

Артикул

Название

Примечание

Количество

1

47982348

ARMREST

Assembly, Joystick & 2 Aux Control

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

5шт.

Выбрано товаров: 3
