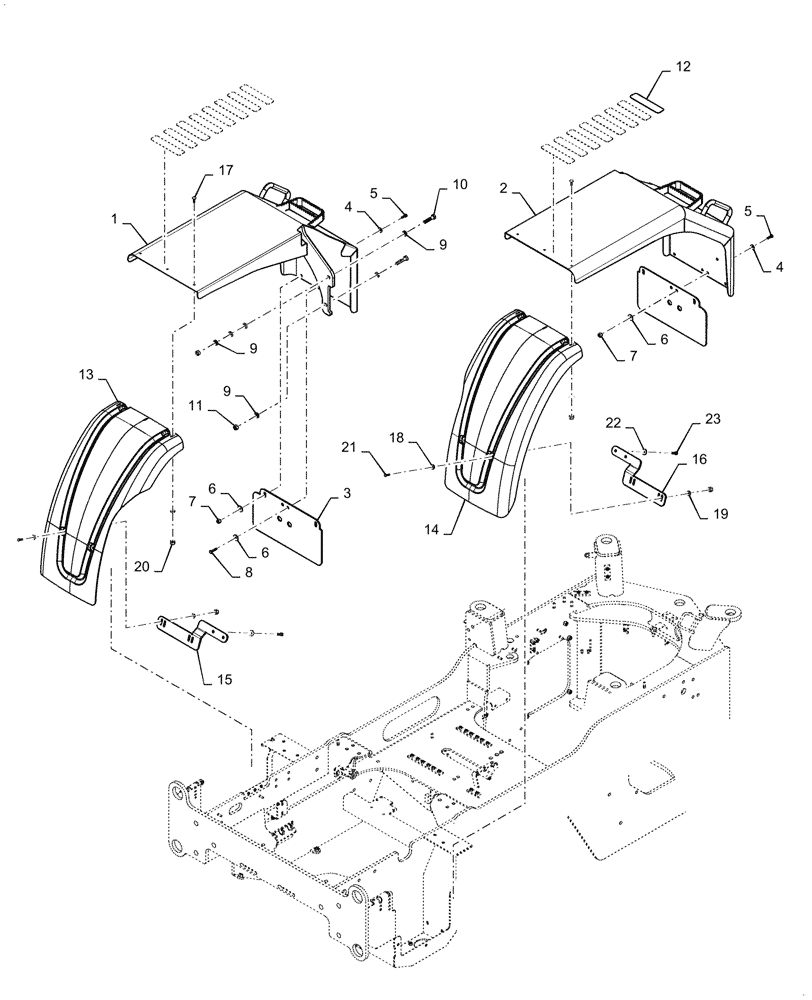

Запчасти Case 721G (90.116.110) - REAR FENDER WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47761079

SUPPORT

LH Platform

1шт.

2

47761074

SUPPORT

RH Platform

1шт.

3

87347285

MUDFLAP

Rear

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

6

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

8шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

8

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

10

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

11

829-1416

NUT,M16, Cl 10

4шт.

12

D55216

PAD,2" x 9"

16шт.

13

87368009

REAR FENDER

Wide, LH

1шт.

14

87368010

REAR FENDER

Wide, RH

1шт.

15

84349969

BRACKET, SUPPORTING

Fender, LH

1шт.

16

84349966

BRACKET, SUPPORTING

Fender, RH

1шт.

17

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

6шт.

18

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

10шт.

19

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

21

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

22

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

23

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.
