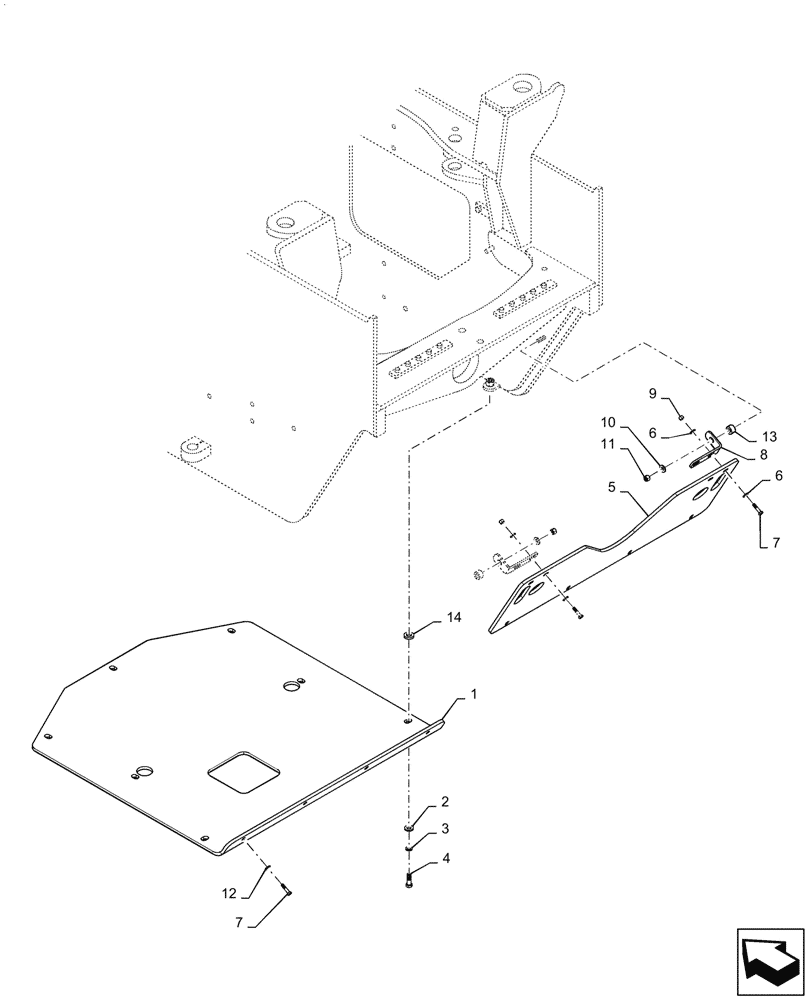

Запчасти Case 721G (90.116.060) - REAR SKID PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87593940

SKID PLATE

Black

1шт.

2

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

7шт.

3

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

7шт.

4

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

7шт.

5

84370857

SKID PLATE

Gray

1шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

7

86639209

BOLT,M8 x 1.25 x 40.45mm, Cl 10.9

8шт.

8

87593947

BRACKET

Skid Plate

2шт.

9

86528579

NUT,M8 x 1.25

4шт.

10

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

12

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

13

372947A1

SPACER

Bracket

2шт.

14

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

2шт.
