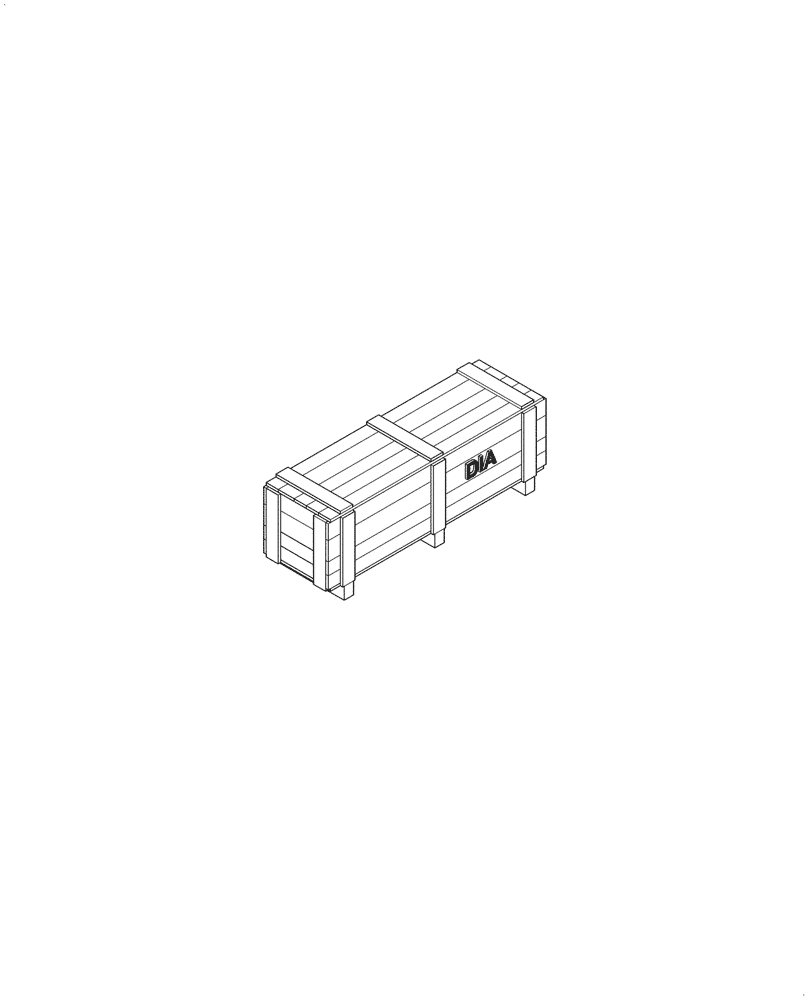

Запчасти Case 721G (88.100.50[01]) - DIA KIT, AIR CONDITIONING CAB (88) - ACCESSORIES

1

47998974

DIA KIT, Air Conditioning, Incl 2 - 51

KIT

1шт.

2

48002207

Instruction Sheet

INSTRUCTION

1шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

4

47502435

GUARD

Engine Accessory, W/ A/C

1шт.

5

47501019

BELT

Alternator, W/ A/C

1шт.

6

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

3шт.

7

8500795

AIRCOND. COMPRESSOR,W/ Pulley

1шт.

8

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

3шт.

9

231-4248

NUT,1/2"-13, GB

1шт.

10

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

11

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

12

225-14108

NUT,#8-32

2шт.

13

284273A2

SWITCH, A/C HIGH PRE

High Pressure

1шт.

14

31-1081

CLAMP

4шт.

15

367489A1

BLOCK

2шт.

16

379374A1

BLOCK

1шт.

17

433723A1

CLAMP

Bracket, Receiver Dryer

2шт.

18

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

19

47443226

HOSE

Compressor to Condenser

1шт.

20

47624200

WASHER

1шт.

21

47624208

SEALING WASHER

1шт.

22

47682615

HOSE

Dryer to Cab

1шт.

23

47689567

PLATE

1шт.

24

47728710

FOAM

Seal, A/C Cooler

1шт.

25

47742875

HOSE

Cab to Compressor

1шт.

26

47821526

RECEIVER-DRYER

Horizontal

1шт.

27

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

28

60-4640T1

LATCH

1шт.

29

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

30

825-1406

NUT,M6, Cl 8

1шт.

31

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

32

832-10406

NUT,M6 x 1, Cl 8

2шт.

33

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

34

84191331

A/C HOSE

Condenser to Dryer

1шт.

35

84411602

PLATE

A/C Condenser

1шт.

36

84591180

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

37

8500133

OIL SEAL

Oil Cooler Side

2шт.

38

8500878

CONDENSER

A/C

1шт.

39

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

40

87432328

SEAL

A/C Condenser Latch

1шт.

41

87587637

PLASTIC-RUBBER TUBE

1/2" ID Clear PVC

1шт.

42

892-11008

LOCK WASHER,8mm ID

4шт.

43

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

44

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

45

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

46

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

47

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

48

84153830

FUSE,5A, Mini, Beige

1шт.

49

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

50

47675929

AIR CONDITIONER

1шт.

51

47748651

PANEL

Control, A/C W/ Heat

1шт.
