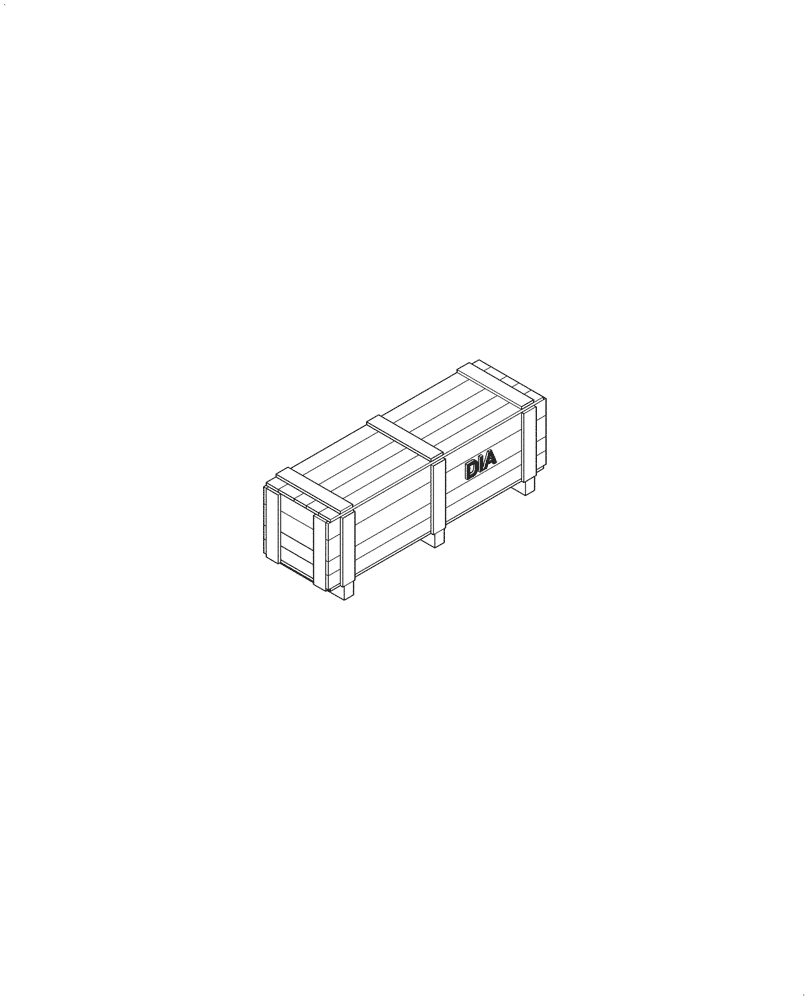

Запчасти Case 721G (88.100.39[02]) - DIA KIT, SKID AND FUEL TANK GUARDS (88) - ACCESSORIES

1

48044374

SKID AND FUEL TANK GUARDS, Incl 2 - 28

KIT

1шт.

2

48044396

INSTRUCTION

SKID AND FUELTANK GUARD

1шт.

3

47407556

GUARD

LH, BELLY

1шт.

4

47407545

GUARD

RH, BELLY

1шт.

5

47400206

GUARD

ACCESS

2шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

29шт.

7

892-11012

LOCK WASHER,M12

33шт.

8

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

29шт.

9

47407558

PLATE

SKID

1шт.

10

84370857

SKID PLATE

1шт.

11

87593947

BRACKET

SKID PLATE

2шт.

12

895-15012

WASHER,M12 x 28 x 2.5

4шт.

13

496-81022

WASHER

2шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

16

372947A1

SPACER

2шт.

17

892-11008

LOCK WASHER,8mm ID

4шт.

18

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

21

47382614

GUARD

REAR BELLY

1шт.

22

47382618

GUARD

FUEL TANK,

1шт.

23

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

24

47407577

CLAMP

4шт.

25

87318127

CLAMP

2шт.

26

360476A1

BRACKET

4шт.

27

830-62012

NUT

6шт.

28

47407540

PLATE

FRONT SKID,

1шт.
