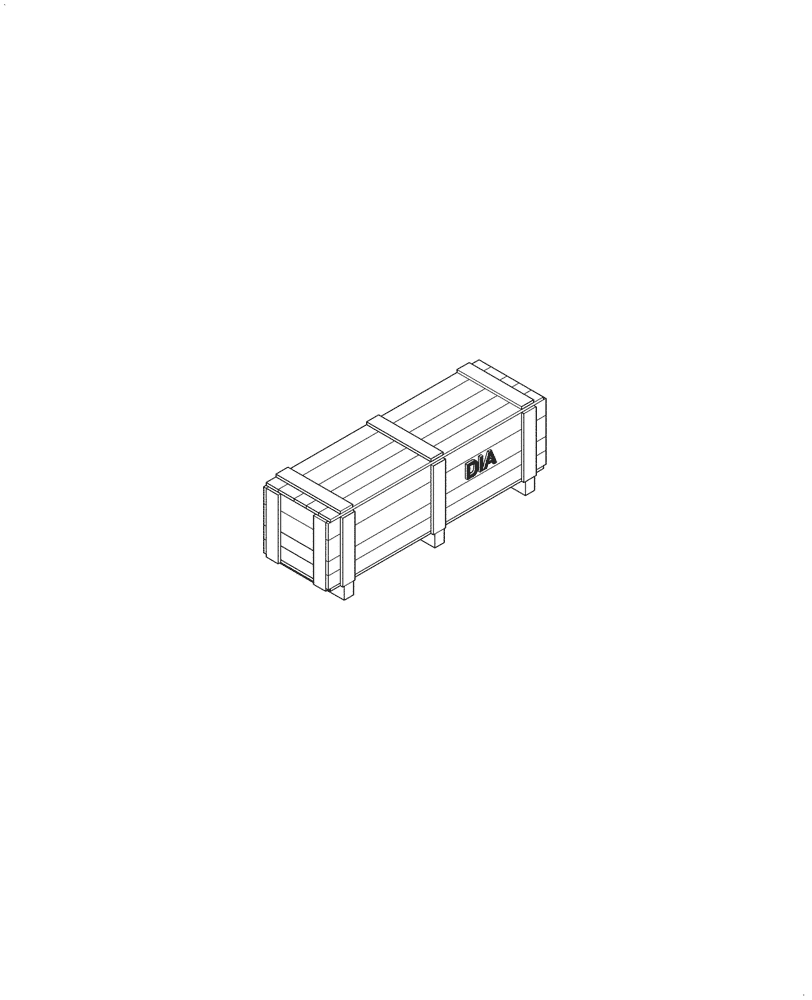

Запчасти Case 721G (88.100.39[01]) - DIA KIT, FRONT ARTICULATION GUARDS (88) - ACCESSORIES

1

47865196

DIA KIT, Front and Articulation Guards, Incl 2 - 27

KIT

1шт.

2

47865197

Instruction Sheet

INSTRUCTION

1шт.

3

892-11010

LOCK WASHER,M10

5шт.

4

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

5шт.

5

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

2шт.

6

84409663

DECAL

Tie Down

2шт.

7

47489908

COVER

Front Articulation

1шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

24шт.

9

892-11012

LOCK WASHER,M12

24шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

11

47400220

PROTECTION PLATE

Front Articulation Joint

1шт.

12

47400218

PROTECTION PLATE

Front Articulation Joint

1шт.

13

47400229

PROTECTION PLATE

Front Articulation Joint

1шт.

14

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

15

47865024

JOINT

Rear Articuilation Joint

1шт.

16

47865038

JOINT

Rear Articulation Joint

1шт.

17

47400212

PROTECTION PLATE

Rear Articulation Joint

1шт.

18

47444489

BRACKET

2шт.

19

830-62010

NUT

2шт.

20

87318127

CLAMP

4шт.

21

830-62012

NUT

10шт.

22

47407577

CLAMP

6шт.

23

47407580

BLOCK

Rear Articulation Guard Mounting

2шт.

24

47410999

BLOCK

Rear Articulation Guard Mounting

2шт.

25

47589687

TRIM

Top Cover

1шт.

26

47400160

GUARD

Front Axle

1шт.

27

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

5шт.
