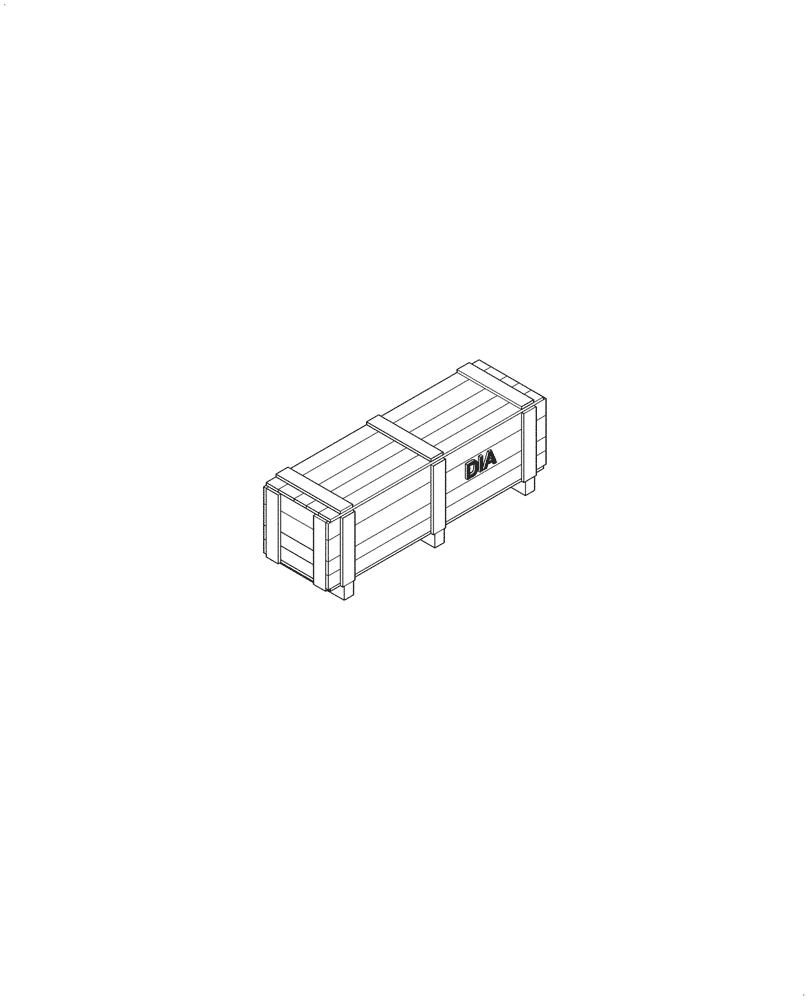

Запчасти Case 721G (88.100.35[06]) - DIA KIT, FIELD RIDE CONTROL CONVERSION (88) - ACCESSORIES

1

47971122

KIT

DIA KIT, FIeld Ride Control Conversion, Incl 2 - 34

1шт.

2

47971125

INSTRUCTION

1шт.

3

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

3шт.

4

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

2шт.

5

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.

6

87393646

BRACKET

1шт.

7

87307826

HYD TUBE

1шт.

8

87393434

ACCUMULATOR,3.8L

1шт.

9

87403347

BRACKET

1шт.

10

87492028

U-BOLT

2шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

15

87350055

SWITCH

Ride Control

1шт.

16

87442545

HYD TUBE,25 mm DIA

Lift Rod, Right

1шт.

17

87442547

HYD TUBE,25 mm DIA

Lift Rod, Left

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

19

87445673

FITTING

Pressure Switch

1шт.

20

446183A1

PRESSURE SWITCH

Rollback

1шт.

21

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

22

87307827

HYD TUBE

Lift Base, Right

1шт.

23

87442515

FLEXIBLE HOSE

Ride Control Acuumalator

1шт.

24

87442516

FLEXIBLE HOSE

Ride Control Base

1шт.

25

87305431

FLEXIBLE HOSE

Ride Control Rod

1шт.

26

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

27

47960645

HOSE

Ride Control Tank

1шт.

28

87453136

DECAL

Picture Only

2шт.

29

87453132

DECAL

English

2шт.

30

87453133

DECAL

French

2шт.

31

87453134

DECAL

Spanish

2шт.

32

84493112

DECAL

2шт.

33

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

4шт.

34

84494281

HYDRAULIC VALVE

1шт.
