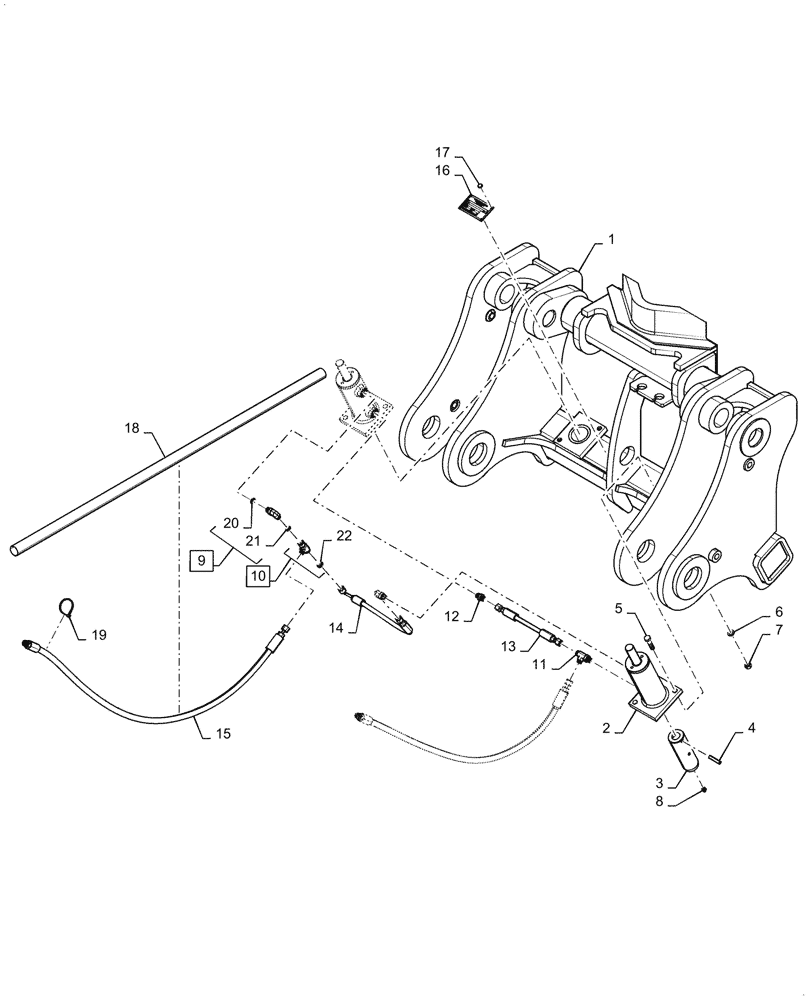

Запчасти Case 721G (82.300.090) - VAR - 424249, 424250, 734006, 734009 - HYDRAULIC COUPLER, XT, ACS COMP (82) - FRONT LOADER & BUCKET

1

84539814

FRAME

Coupler

1шт.

2

84538634

HYDRAULIC CYLINDER

2шт.

3

84538636

PIN,50.8mm OD x 162.6mm L

2шт.

4

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

9

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl, 20, 21

2шт.

10

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl, 22

1шт.

11

700-456

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

12

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

13

84539838

HYDRAULIC HOSE

1шт.

14

84538677

HYDRAULIC HOSE

1шт.

15

84561079

HOSE ASSY.

Coupler, XT

2шт.

16

84396855

1шт.

17

87564933

PIN

4шт.

18

86024409

PROTECTING COVER

Nylon

2шт.

19

86566989

CABLE TIE,208mm L

4шт.

20

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

21

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

22

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.
