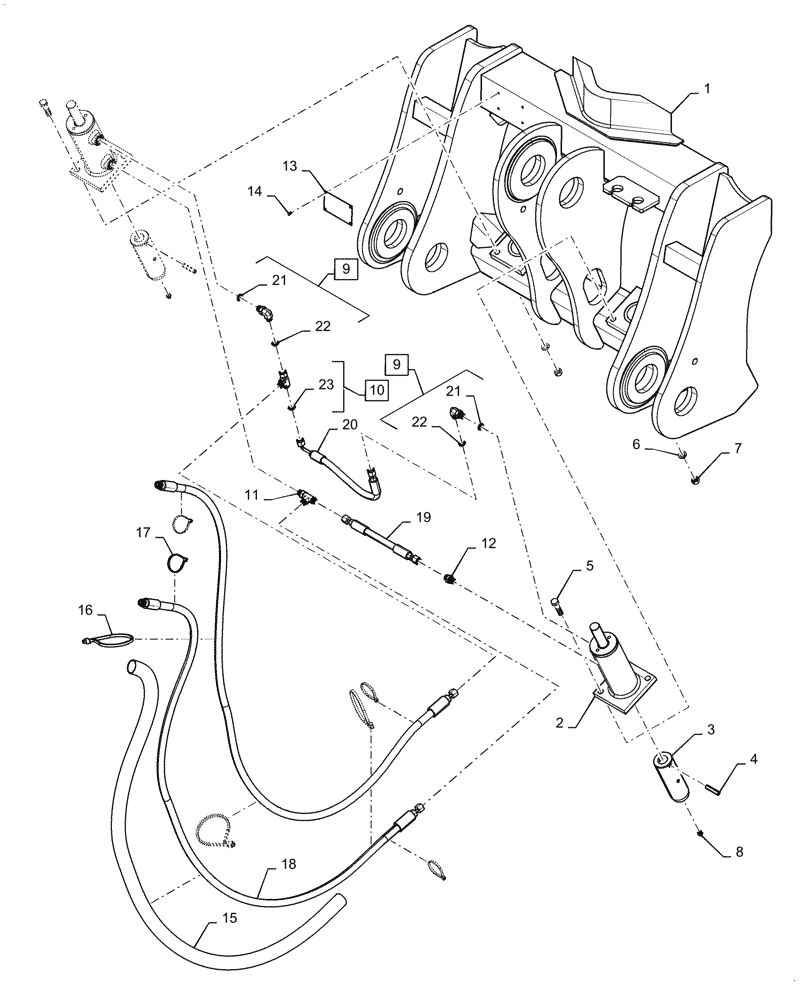

Запчасти Case 721G (82.300.080) - VAR - 424249, 424250, 734006, 734009 - HYDRAULIC COUPLER, Z-BAR & XR, ACS COMP (82) - FRONT LOADER & BUCKET

1

84539818

FRAME

Coupler

1шт.

2

84538634

HYDRAULIC CYLINDER

2шт.

3

84538636

PIN,50.8mm OD x 162.6mm L

2шт.

4

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

9

84432241

90 ELBOW,90 Degree, 9/16"-18 ORFS x M14 x 1.5 ORB

Incl, 21, 22

2шт.

10

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl, 23

1шт.

11

700-456

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

12

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

13

84396855

1шт.

14

87564933

PIN

4шт.

15

87492056

PROTECTIVE SLEEVE

Nylon

2шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

17

86566989

CABLE TIE,208mm L

4шт.

18

84561078

HOSE ASSY.

Z-Bar Coupler

2шт.

19

84539838

HYDRAULIC HOSE

1шт.

20

84538677

HYDRAULIC HOSE

1шт.

21

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

22

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

23

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.
