(82.300.070) - VAR - 482047 - HYDRAULIC COUPLER, XT , JRB COMP CNH

Запчасти Case 721G (82.300.070) - VAR - 482047 - HYDRAULIC COUPLER, XT , JRB COMP CNH (82) - FRONT LOADER & BUCKET

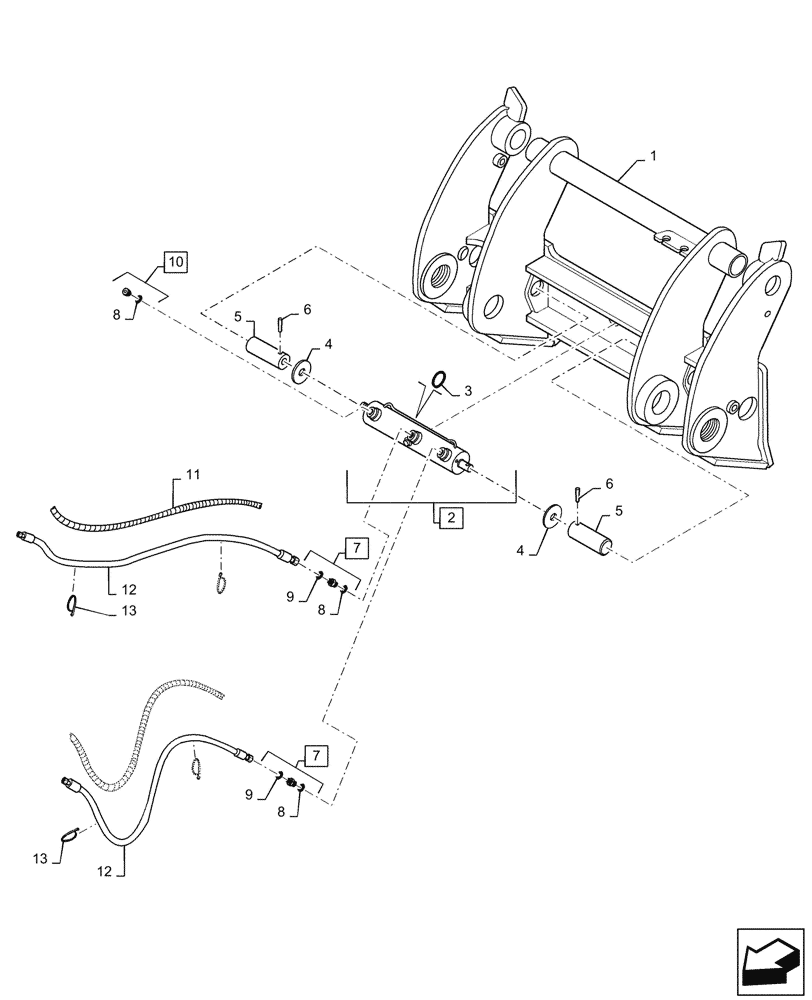

Схема запчастей Case 721G - (82.300.070) - VAR - 482047 - HYDRAULIC COUPLER, XT , JRB COMP CNH (82) - FRONT LOADER & BUCKET
6
4
13
9
7
6
11
10
13
7
5
5
3
12
1
12
8
8
9
4
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87475275

FRAME

Coupler, XT

1шт.

2

84139131

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 206.5mm Stroke

Coupler, Incl 3

1шт.

3

87741101

SEAL KIT

Hydraulic Cylinder

1шт.

4

87741104

INDICATOR

Coupler, Red

2шт.

5

87736653

SPECIAL PIN,50.8mm OD x 145.57mm L

Coupler Pin

2шт.

6

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

7

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 8, 9

2шт.

8

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

86598044

PLUG,Hex, M14 x 1.5 ORB

Incl 8

1шт.

11

86024409

PROTECTING COVER

1350 mm (53 - 5/32 in)

2шт.

12

87475290

HOSE ASSY.

XT Coupler; 1219 mm (48 in)

2шт.

13

86566989

CABLE TIE,208mm L

Strap

4шт.
