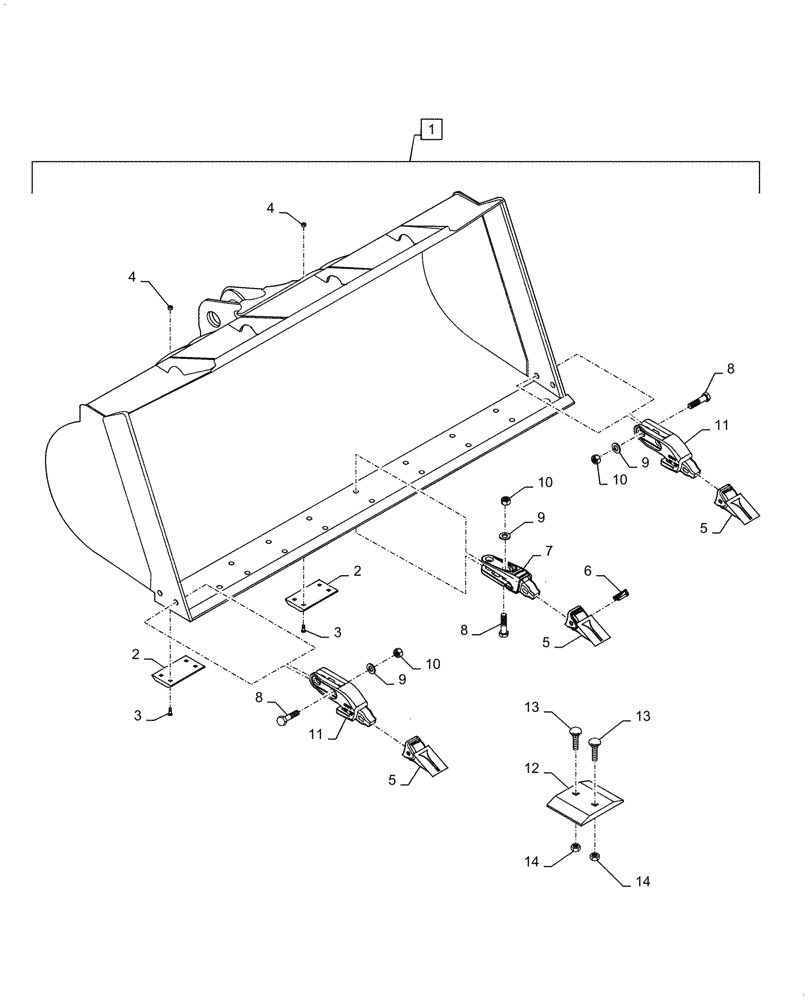

Запчасти Case 721G (82.300.050) - VAR - 424243, 424248, 424249, 424250, 482396 - LOADER BUCKET - WITH TEETH, SEGMENTS AND SKID PADS/COUPLERS (82) - FRONT LOADER & BUCKET

1

84168111

BUCKET

2.1 Cubic Meters (2.8 Cubic Yards), Incl 2 - 14

1шт.

1

84294126

BUCKET

2.3 Cubic Meters ( 3.0 Cubic Yards ), Incl 2 - 14

1шт.

1

84294151

BUCKET

2.5 Cubic Meters ( 3.25 Cubic Yards ), Incl 2 - 14

1шт.

2

8500180

SKID PLATE

Bottom, Bolt-On

2шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

5

84168135

BUCKET TOOTH

206.3mm OAL

9шт.

5

84216208

BUCKET TOOTH

Rock Chisel (SF15RC)

9шт.

5

84216210

BUCKET TOOTH

General Purpose (SF15SYL)

9шт.

5

84216211

BUCKET TOOTH

Tiger (SF15TV)

9шт.

5

84216212

BUCKET TOOTH

Twin Tiger (SF15UT)

9шт.

5

84216213

BUCKET TOOTH

Flare (SF15F)

9шт.

5

84216214

BUCKET TOOTH

Heavy Penetrater (SF15HP)

9шт.

5

84216215

BUCKET TOOTH

Rock Loader (SF15RL)

9шт.

6

84168136

BUCKET TOOTH KEY

Mounting Hardware

9шт.

7

84168134

BUCKET TOOTH SHANK

Bolt-On, Center

7шт.

8

86508736

BOLT,Hex, 1"-8 x 4", G8

18шт.

9

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

18шт.

10

86511609

NUT,1"-8, G8

18шт.

11

84168137

BUCKET TOOTH SHANK

Bolt-On, Corner

2шт.

12

8605842

CUTTING EDGE

Segments Cuting Edge for Teeth

8шт.

13

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

16шт.

14

429-1016

NUT,1"-8, G8

16шт.
