(82.300.040) - VAR - 424243, 424244, 424246, 424248, 424250 - BUCKET, 3.0, 3.25, 3.50 CU YD

Запчасти Case 721G (82.300.040) - VAR - 424243, 424244, 424246, 424248, 424250 - BUCKET, 3.0, 3.25, 3.50 CU YD (82) - FRONT LOADER & BUCKET

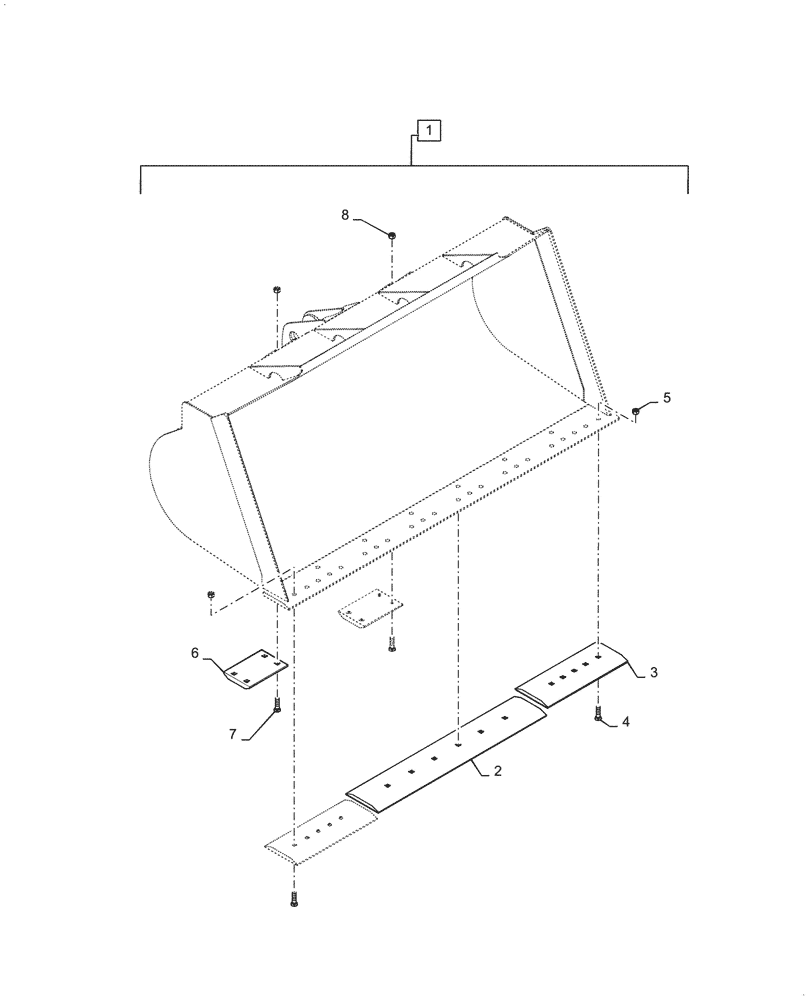

Схема запчастей Case 721G - (82.300.040) - VAR - 424243, 424244, 424246, 424248, 424250 - BUCKET, 3.0, 3.25, 3.50 CU YD (82) - FRONT LOADER & BUCKET
6
4
7
2
8
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84143994

BUCKET

3.00 Cu Yd Bucket With Blade, Incl 2 - 8

1шт.

1

84294135

BUCKET

3.25 Cu Yd Bucket With Blade, Incl 2 - 8

1шт.

1

84269196

BUCKET

3.50 Cu Yd Bucket With Blade, Incl 2 - 8

1шт.

1

84269177

BUCKET, LIGHT MATERI

5.5 Cu Yd Bucket With Blade, Incl 2 - 8

1шт.

2

8500177

CUTTING EDGE,Bolt On, Double Edged, 6 Hole, 330.2mm W x 1219.5mm L

Center Bolt On

1шт.

3

8500178

CUTTING EDGE

Outer Bolt On

2шт.

4

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

16шт.

5

329-1016

NUT,1"-8, G8

16шт.

6

8500180

SKID PLATE

Bolt On Skid

2шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

8

425-1612

NUT,3/4"-10, G5, Hvy

8шт.
