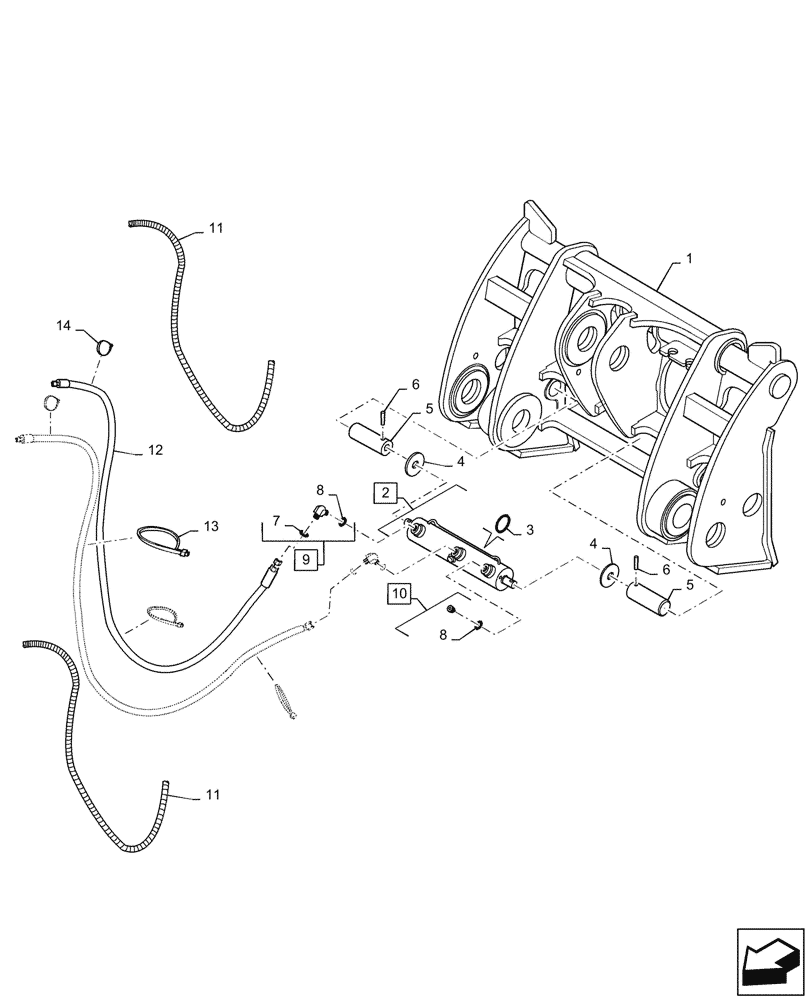

Запчасти Case 721G (82.300.030) - VAR - 424248, 424250, 482047 - HYDRAULIC COUPLER, Z-BAR & XR, JRB COMP CNH (82) - FRONT LOADER & BUCKET

1

47721073

COUPLING

Coupler, Z-Bar & XR

1шт.

2

84139131

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 206.5mm Stroke

Coupler, Incl 3

1шт.

3

87741101

SEAL KIT

Hydraulic Coupler Cylinder

1шт.

4

87741104

INDICATOR

Coupler, Red

2шт.

5

87736653

SPECIAL PIN,50.8mm OD x 145.57mm L

Coupler Pin

2шт.

6

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

9

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl 7, 8

1шт.

10

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 8

1шт.

11

87492056

PROTECTIVE SLEEVE

1980 mm (77 - 61/64 in)

2шт.

12

87482163

HOSE ASSY.

Z-Bar Coupler, 1854 mm (73 in)

2шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

Strap

3шт.

14

86566989

CABLE TIE,208mm L

Strap

4шт.
