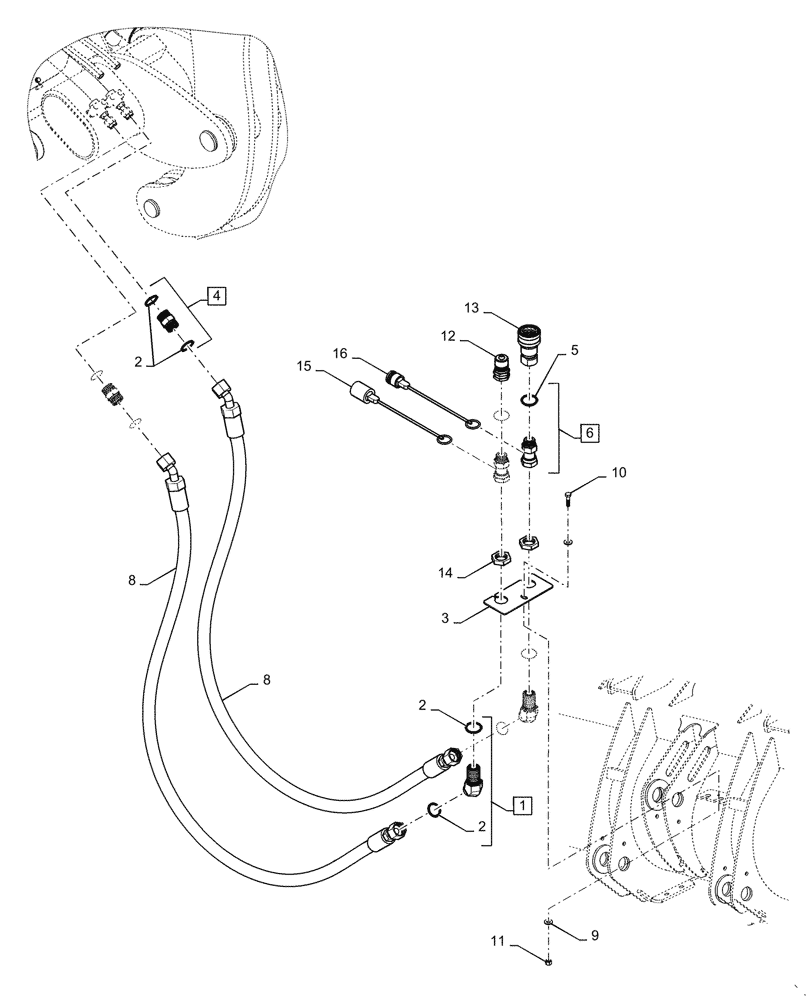

Запчасти Case 721G (82.100.080) - VAR - 424918 - GRAPPLE BUCKET HYDRAULIC LINES (82) - FRONT LOADER & BUCKET

1

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

Incl 2

2шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

3

84215434

RETAINING PLATE

Bracket, Grapple Bucket Hyd Lines

1шт.

4

201-109

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Incl 2

2шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

6

84215429

FITTING

AG Grapple, Incl 5

2шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

8

84215432

HOSE ASSY.

Grapple Bucket, 1909mm Lg

2шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

10

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

12

84215408

FITTING

Hyd Quick Coupler Nipple

1шт.

13

84215410

FITTING

Hyd Quick Coupler Fitting

1шт.

14

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

2шт.

15

114533A1

DUST CAP

Hydraulic Fitting

1шт.

16

114534A1

PLUG

Dust

1шт.
