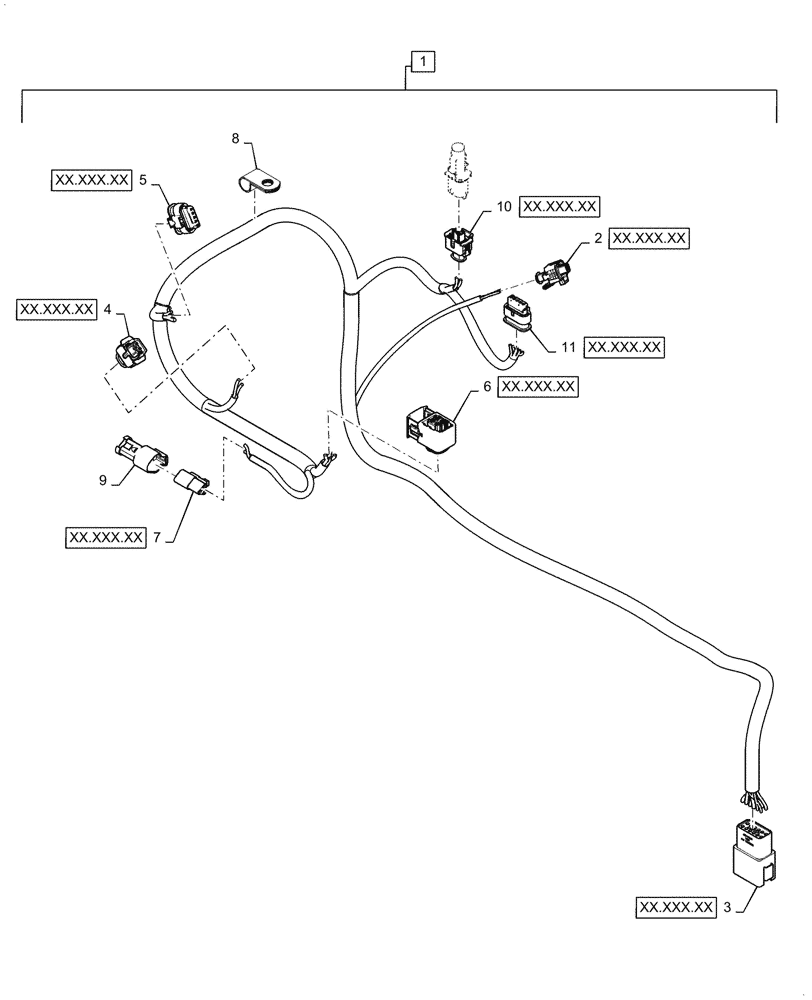

Запчасти Case 721G (55.988.010[01]) - SCR HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47491393

WIRE HARNESS

SCR, Incl 2 - 11

1шт.

2

87709798

ELEC CONNECTOR,Female, 2 Cavities

DEFDM Doser, Metering Valve

1шт.

2

84130602

TERMINAL CONNECTOR

2шт.

3

87695724

ELEC CONNECTOR,Male, 12 Pole

SCR to Engine

1шт.

3

87695623

ELEC. TERMINAL PIN

Terminal, Nickel

12шт.

4

87709793

WIRE CONNECTOR,Female, 2 Cavities

DTS Downstream Tempature Sensor

1шт.

4

84130602

TERMINAL CONNECTOR

2шт.

5

84190317

WIRE CONNECTOR,Female, 5 Cavities

NOX Sensor

1шт.

5

84190319

TERMINAL CONNECTOR

4шт.

5

87709655

BLANK-OFF PLUG

Plug, Cavity 5

1шт.

6

84146686

ELEC CONNECTOR,Female, 4 Cavities

NH3

1шт.

6

84152584

TERMINAL,Tin, 0.50 - 1.00mm

4шт.

7

225295C1

ELEC CONNECTOR,Female, 3 Pin

Can Bulk Head

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

7

84068583

PLUG,12 - 16 Ga, White

1шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

9

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

10

87709793

WIRE CONNECTOR,Female, 2 Cavities

DTS Upstream Tempature Sensor

1шт.

10

84130602

TERMINAL CONNECTOR

2шт.

11

84190317

WIRE CONNECTOR,Female, 5 Cavities

NOX Sensor

1шт.

11

84190319

TERMINAL CONNECTOR

4шт.
