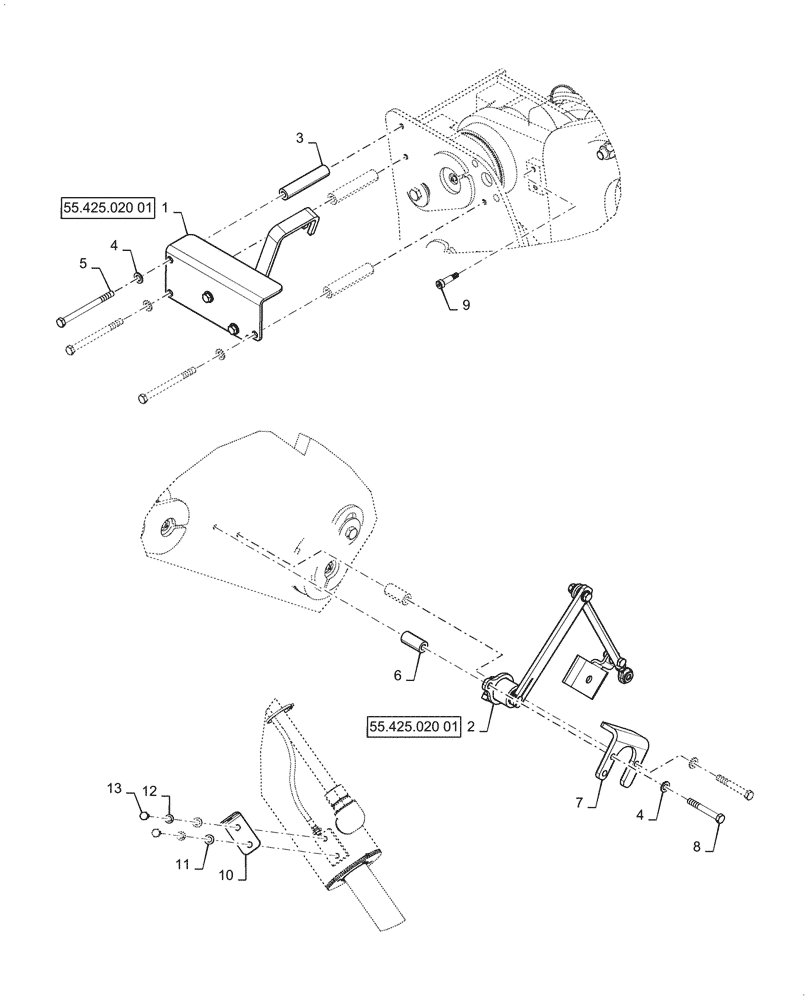

Запчасти Case 721G (55.425.020) - ELECTROHYDRAULIC SENSOR, LIFT AND TILT, XT (55) - ELECTRICAL SYSTEMS

1

47807441

SENSOR

EH Lift

1шт.

2

47772612

SENSOR

EH Tilt

1шт.

3

47786834

SPACER

Support, EH Sensor

3шт.

4

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

5шт.

5

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

3шт.

6

47786277

SUPPORT

EH Sensor

2шт.

7

47772552

COVER

EH Sensor, Tilt

1шт.

8

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

9

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

1шт.

10

87441374

BRACKET

Grease Hose

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

12

892-11010

LOCK WASHER,M10

2шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.
