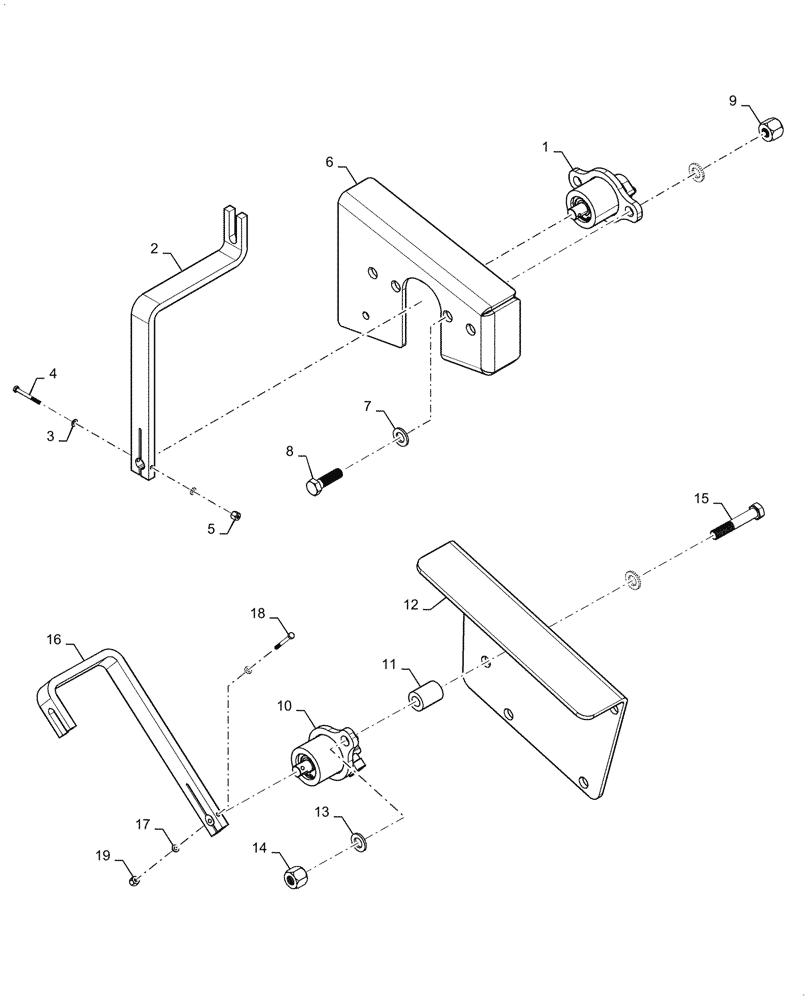

Запчасти Case 721G (55.425.010[01]) - ELECTROHYDRAULIC SENSOR, LIFT & TILT, Z-BAR / XR ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47772374

SENSOR

Tilt

1шт.

2

47788254

Arm

ARM

1шт.

3

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

4

87384106

BOLT,M4 x 42.92mm, Cl 8.8

1шт.

5

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

6

48036177

Cover

COVER

1шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

8

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

10

47772374

SENSOR

Lift

1шт.

11

47786469

Support

SUPPORT

2шт.

12

47978970

Cover

COVER

1шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

15

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

16

47788820

Arm

ARM

1шт.

17

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

18

87384106

BOLT,M4 x 42.92mm, Cl 8.8

1шт.

19

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.
