(55.404.020) - DRIVING LIGHTS WASTE HANDLER

Запчасти Case 721G (55.404.020) - DRIVING LIGHTS WASTE HANDLER (55) - ELECTRICAL SYSTEMS

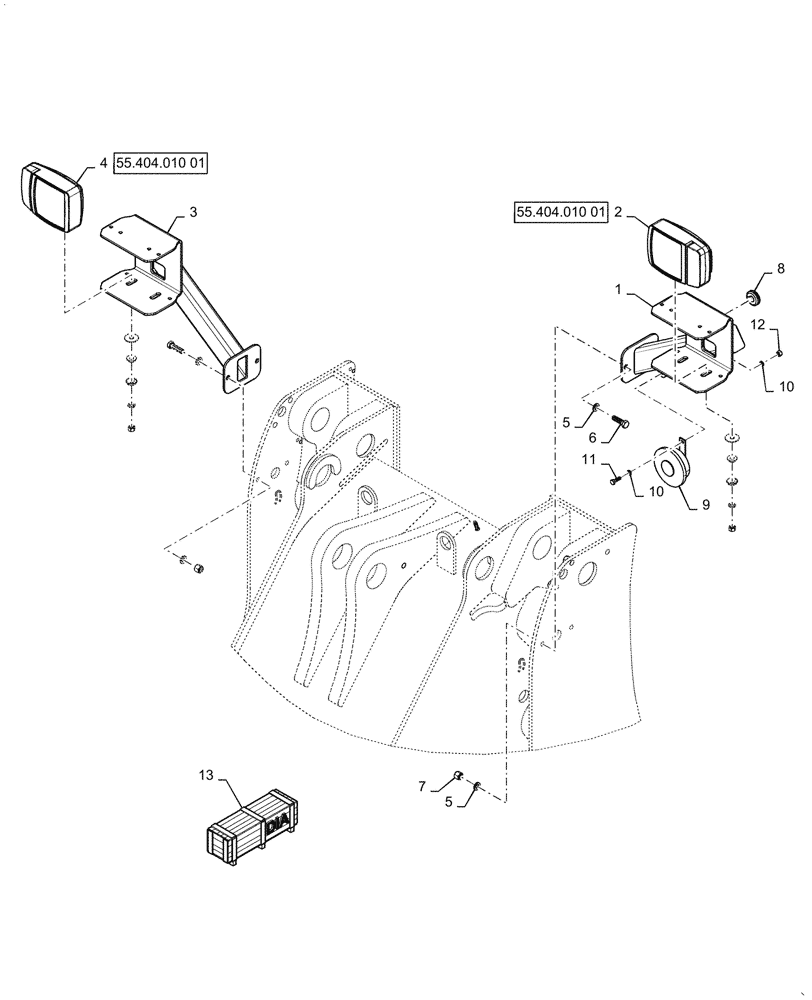

Схема запчастей Case 721G - (55.404.020) - DRIVING LIGHTS WASTE HANDLER (55) - ELECTRICAL SYSTEMS
55.404.010 01
12
11
2
5
6
1
4
3
13
9
5
10
10
7
8
55.404.010 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47382628

MOUNT

Combination Light

1шт.

2

368056A1

LIGHT,Halogen, 24V, 70W, Clear

1шт.

3

47400118

MOUNT

Combination Light

1шт.

4

368055A1

LIGHT,Halogen, 24V, 70W, Clear

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

8

248-23108

GROMMET,3/4" ID x 1 7/16" Groove Dia, Str Cut

2шт.

9

87382200

HORN

300Hz

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

13

47687036

KIT

DIA KIT, WH Lights, Incl 1, 2, 6 - 8, 10, Inst Sheet 47922030

1шт.
