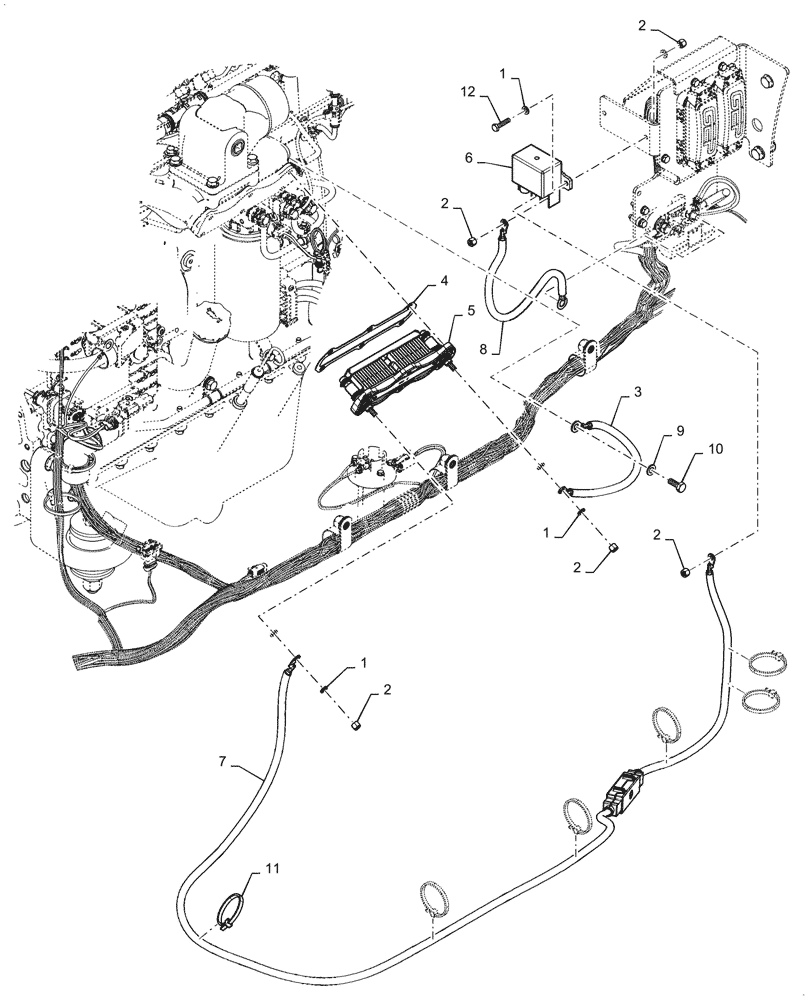

Запчасти Case 721G (55.202.010) - VAR - 482322 - GRID HEATER INSTALL (55) - ELECTRICAL SYSTEMS

1

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

2

832-10406

NUT,M6 x 1, Cl 8

6шт.

3

87398558

CABLE

Ground, Grid Heater

1шт.

4

2854701

GASKET,0.8mm Thk

Grid Heater

1шт.

5

87300128

HEATER,24V, 2400W

Assy, Grid

1шт.

6

84540512

RELAY,150A

Grid Heater

1шт.

7

47411272

ELECTRIC CABLE

Power, Grid Heater

1шт.

8

47411271

ELECTRIC CABLE

Power, Grid Heater Relay

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

10

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

12

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.
