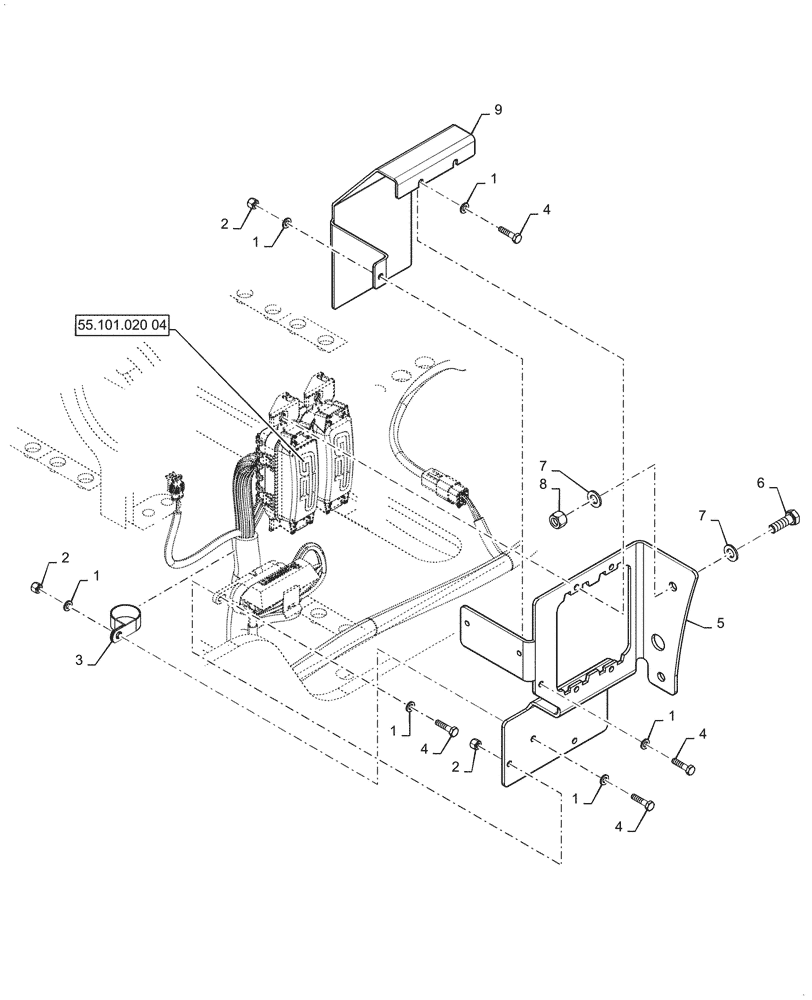

Запчасти Case 721G (55.101.020[03]) - FUSE BOX RELAY HOLDER INSTALLATION (55) - ELECTRICAL SYSTEMS

1

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

2

832-10406

NUT,M6 x 1, Cl 8

4шт.

3

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

1шт.

4

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

8шт.

5

47873670

BRACKET

Relay, Black

1шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

47873672

PLATE

Relay Cover

1шт.
