Запчасти Case 721G (55.101.020[01]) - ENGINE AND REAR CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

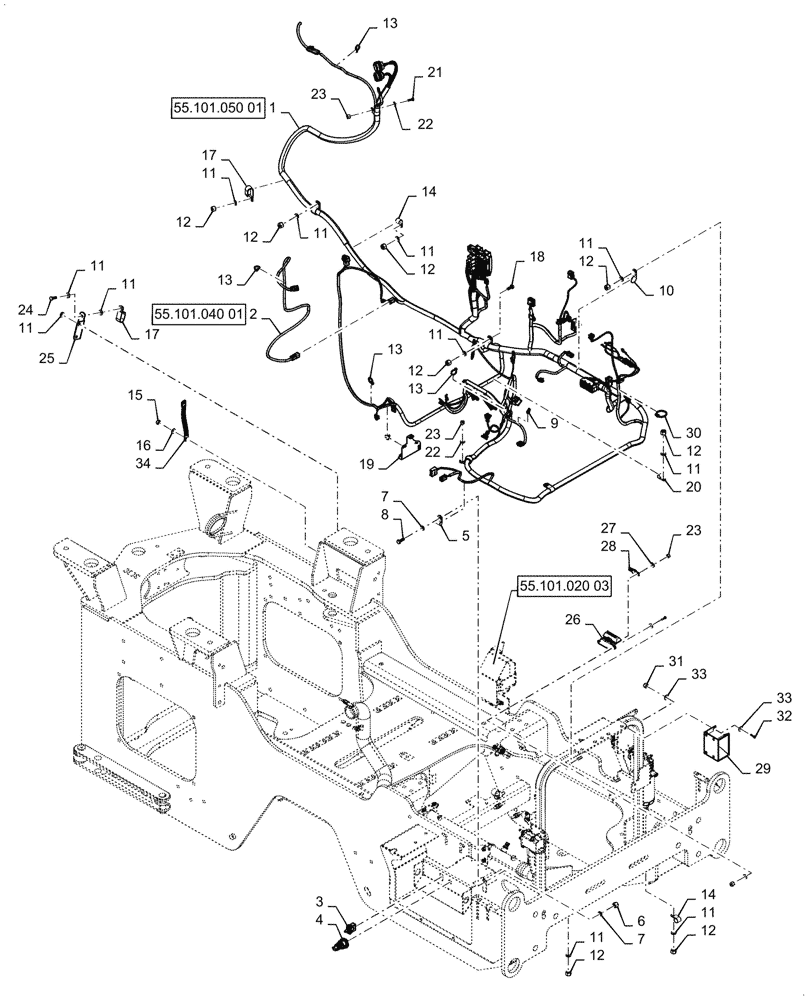

Схема запчастей Case 721G - (55.101.020[01]) - ENGINE AND REAR CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS
55.101.040 01
11
7
23
2
11
28
8
12
11
11
14
19
15
6
18
10
11
12
23
34
12
13
16
12
17
14
7
26
12
13
33
25
11
20
12
17
13
31
3
11
5
1
32
12
22
13
11
11
9
4
12
21
30
33
11
27
11
23
22
29
55.101.050 01
24
55.101.020 03

Артикул

Название

Примечание

Количество

1

47857130

WIRE HARNESS

Engine & Rear Chassis

1шт.

2

47864996

WIRE HARNESS

Fan

1шт.

3

47750058

ROCKER SWITCH

Hood Lift

1шт.

4

47729268

ROTARY SWITCH

Disconnect

1шт.

5

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

7

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

2шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

10

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

14шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

15шт.

14

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

2шт.

15

253347A1

NUT,Hex, M10 x 1.5

2шт.

16

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

17

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

19

47988595

BRACKET

Harness Support

1шт.

20

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

3шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

24

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

25

47871377

BRACKET

Harness Routing

1шт.

26

440038A1

JUNCTION BLOCK

Fuse Block

1шт.

27

892-11008

LOCK WASHER,8mm ID

2шт.

28

440572A1

FUSE,100A, Megaval

1шт.

29

D121972

ALARM

Back Up

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

31

832-10406

NUT,M6 x 1, Cl 8

4шт.

32

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

33

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

34

L126051

GROUND STRAP

1шт.

Выбрано товаров: 34
