(55.101.010[01]) - FRONT CHASSIS HARNESS INSTALLATION, Z-BAR / XR

Запчасти Case 721G (55.101.010[01]) - FRONT CHASSIS HARNESS INSTALLATION, Z-BAR / XR (55) - ELECTRICAL SYSTEMS

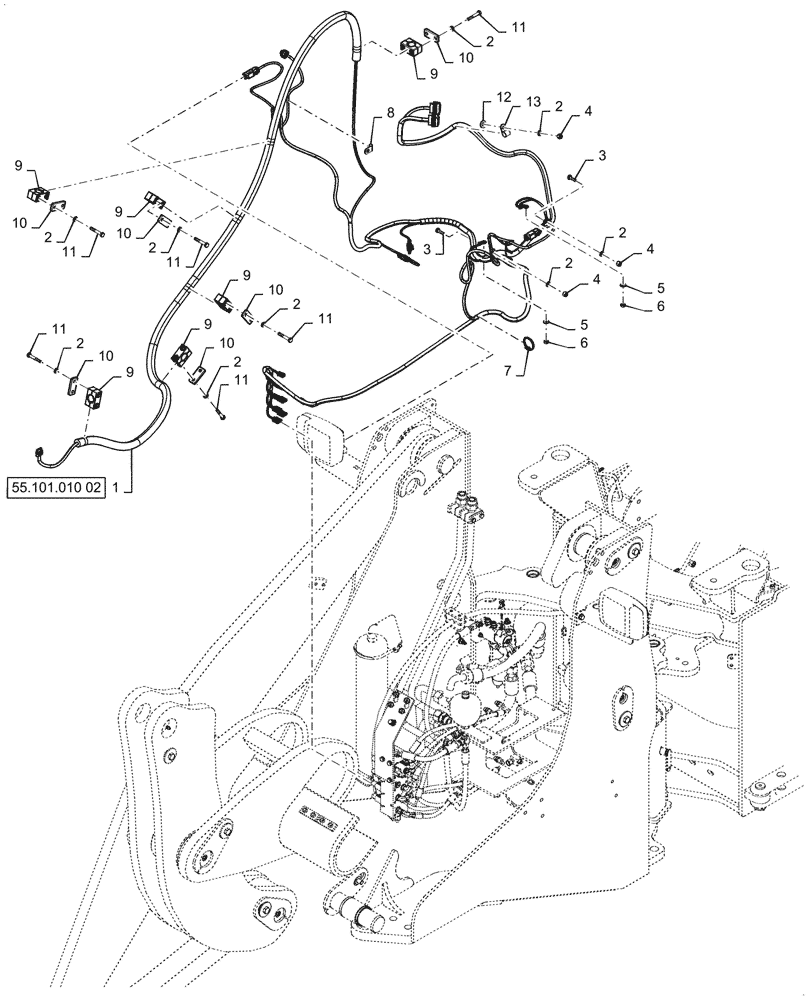

Схема запчастей Case 721G - (55.101.010[01]) - FRONT CHASSIS HARNESS INSTALLATION, Z-BAR / XR (55) - ELECTRICAL SYSTEMS
55.101.010 02
2
11
5
10
9
5
11
10
10
3
10
9
4
7
11
1
2
9
2
11
13
9
6
2
2
2
10
2
2
11
3
4
9
4
2
11
6
8
9
12
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47976514

WIRE HARNESS

Front Chassis, Z-BAR

1шт.

1

47977948

WIRE HARNESS

Front Chassis, XR

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

17шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

5

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

6

253347A1

NUT,Hex, M10 x 1.5

2шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

25шт.

8

515-25111

CLAMP,7/16", Insul, 1/2" Bolt

1шт.

9

372453A1

BLOCK

Tube Mounting

6шт.

10

367658A1

PLATE

Clamp Cover

6шт.

11

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

12шт.

12

895-15012

WASHER,M12 x 28 x 2.5

1шт.

13

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.
