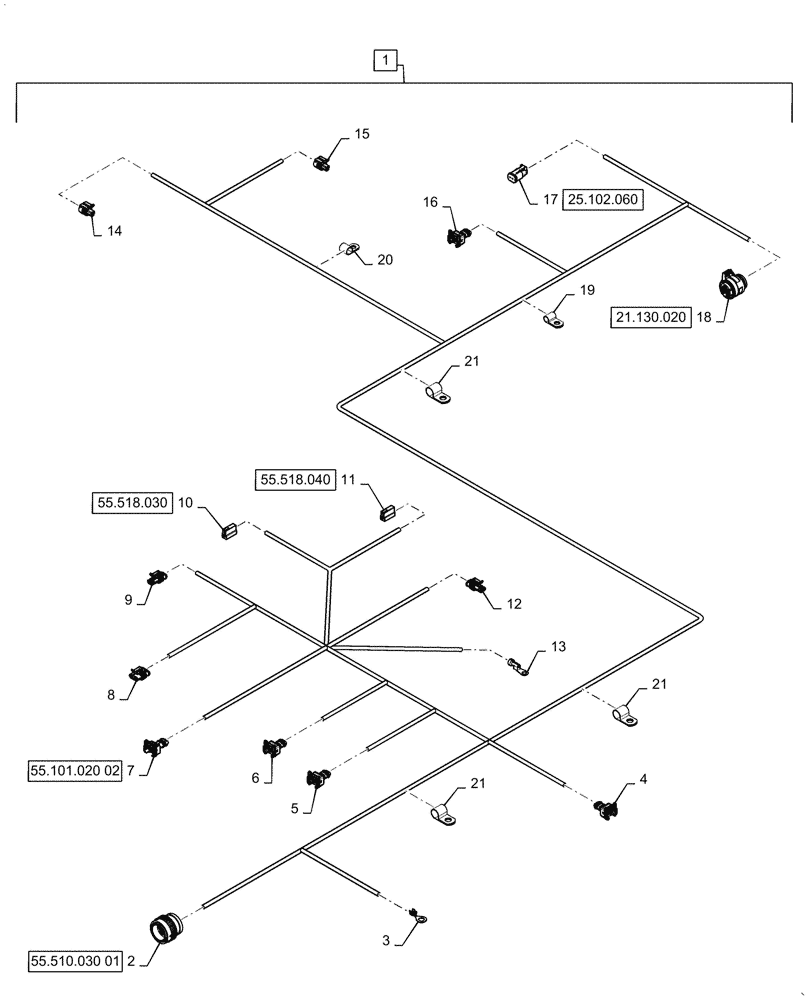

Запчасти Case 721G (55.024.010[02]) - TRANSMISSION HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47876406

WIRE HARNESS

Incl, 2 - 21

1шт.

2

87696949

ELEC CONNECTOR

Transmission to Cab

1шт.

2

87695623

ELEC. TERMINAL PIN

Cavities, 1 - 6, 11, 12, 14, 15, 18 - 29, 31

24шт.

2

87697956

TERMINAL

Cavities, 7 - 9, 13, 30

5шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavities, 16, 17

2шт.

3

84140737

TERMINAL CONNECTOR

Ground

1шт.

4

84364854

ELEC CONNECTOR

Engine Speed Sensor

1шт.

4

87702681

TERMINAL

2шт.

5

84364854

ELEC CONNECTOR

Middle Wheel Chain Speed Sensor

1шт.

5

87702681

TERMINAL

2шт.

6

84364854

ELEC CONNECTOR

Turbine Speed Sensor

1шт.

6

87702681

TERMINAL

1шт.

7

84607243

ELEC CONNECTOR,Female, 2 Cavities

Hydraulic Oil Temperature

1шт.

7

87702681

TERMINAL

2шт.

8

84062580

CONNECTOR, ELEC

Gear Trans Speed Sensor

1шт.

8

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

3шт.

9

82012083

WIRE CONNECTOR,Female

Oil Filter Pressure Switch

1шт.

9

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

10

84015523

WIRE CONNECTOR,Female

Rear Washer Motor

1шт.

10

87697619

TERMINAL

2шт.

11

84015523

WIRE CONNECTOR,Female

Front Washer Motor

1шт.

11

87697619

TERMINAL

2шт.

12

82012083

WIRE CONNECTOR,Female

Transmission Lockup Solenoid

1шт.

12

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

13

84352277

TERMINAL

Hydraulic Filter Sensor

1шт.

14

84078681

WIRE CONNECTOR,Female

Redundant Brake Switch 1

1шт.

14

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

3шт.

15

84078681

WIRE CONNECTOR,Female

Redundant Brake Switch 2

1шт.

15

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

3шт.

16

84364854

ELEC CONNECTOR

Gear Oil Temperature

1шт.

16

87702681

TERMINAL

1шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Diff Lock Solenoid

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

18

47669071

ELEC CONNECTOR

Transmission Controller on Transmission

1шт.

18

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Cavities, 3 - 9

7шт.

18

47703737

ELEC CONNECTOR

Cavities, 1, 2, 10 - 16

9шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

20

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

21

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.
